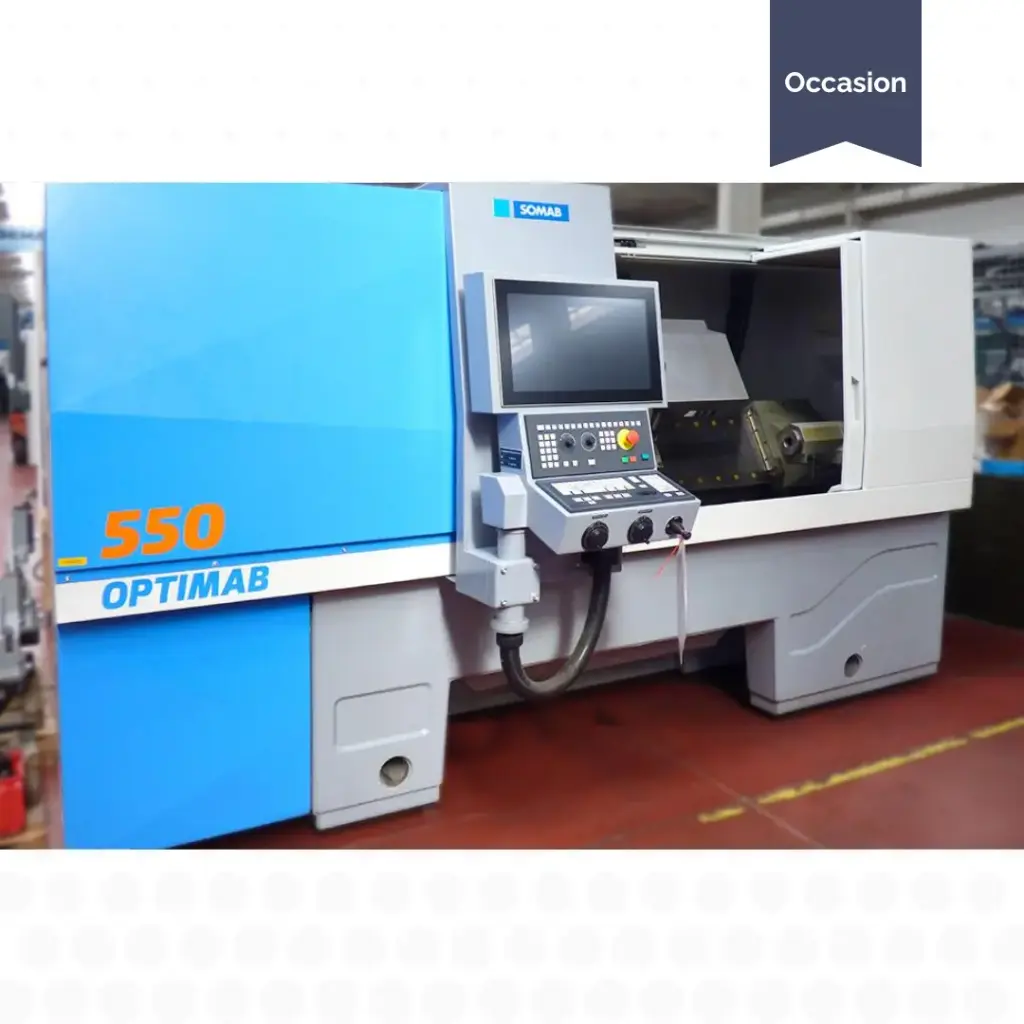

Teach-in CNC lathe SOMAB OPTIMAB 550
Brand: SOMAB
Reference: G00055
Specifications:
| Technology: | CNC |
| Year: | 2017 |
| CNC type: | FAGOR 8065 |
| Distance between centres (mm): | 1430 |
| Max. machining length (mm): | 1155 |
| Swing over bed (mm): | 620 mm |
| Max. machining diameter (mm): | 419 |
| Chuck diameter (mm): | 315 mm |
| X-axis travel (mm): | 302 |
| Z-axis travel (mm): | 1210 |
| C-axis: | Continuous |
| Spindle speed (rpm): | 3200 |
| Spindle bore (mm): | 105 |
| Bar capacity (mm): | 95 |
| Spindle motor power (kW): | 22/30 |
| Number of turrets: | 1 |
| Number of turret stations: | 12 |
| - Overall dimensions L x W x H (mm): | 4900 x 2000 x2000mm |
| Machine weight (t): | 7.5 T |
Equipment:
- C-axis and live tooling
- Chip conveyor
- 2 fixed steady rests
- 10 static tool holders + 2 live tool holders
- Operating hours: 1200
Internal Reference:
G00055
