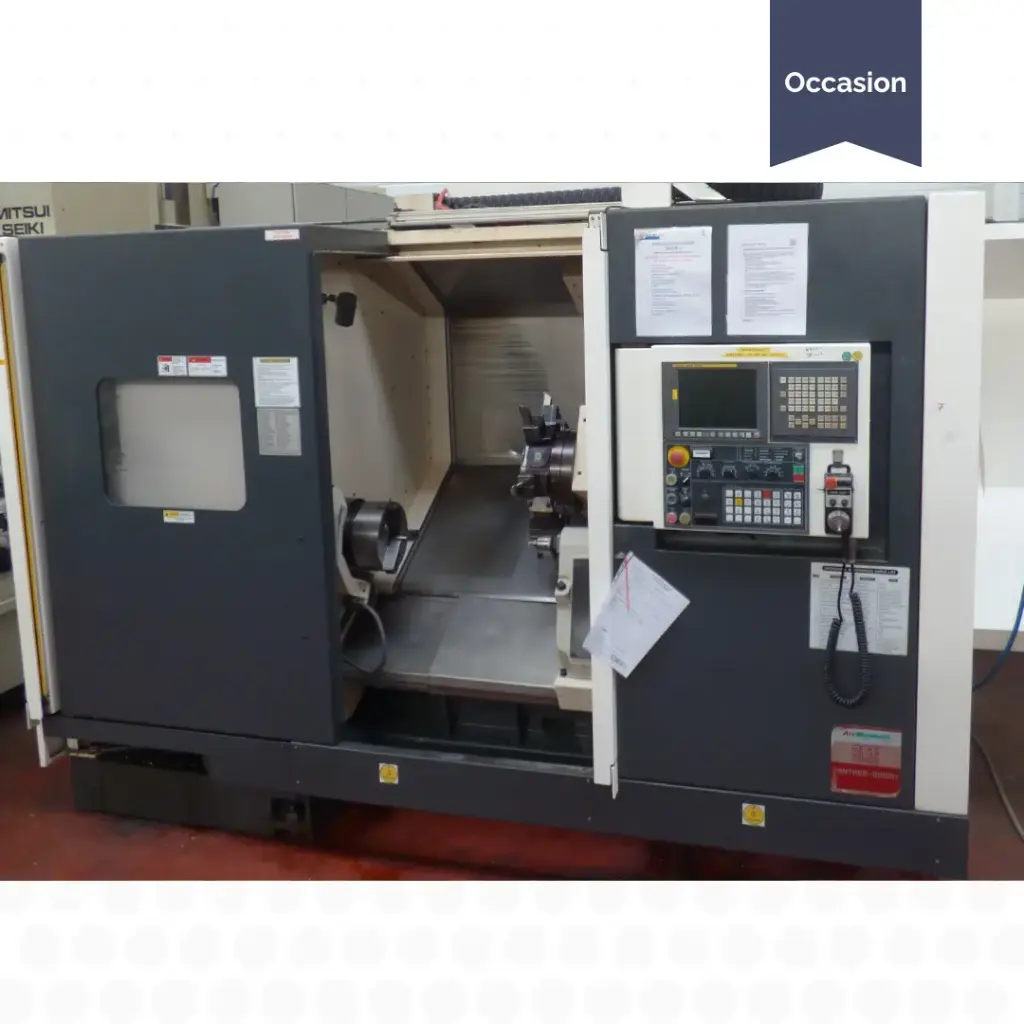

CNC lathe VANTAGE 800MY ACE
Reference: G00070
Specifications:
| Machine weight: | 6000 kg |
| Spindle bore (mm): | 63 mm |
| CNC type: | FANUC SERIES OiTD |
| Dimensions: | 3700 x1950x2500 mm |
| X-axis travel: | 300 mm |
| Y-axis travel: | +55/-75 mm |
| Z-axis travel: | 800 mm |
| Table speed (rpm): | 4000 rpm |
| Swing over cross slide: | 400 mm |
| Distance between centres: | 1025 mm |
| Tailstock: | MT4 |
| Swing over bed: | 640 mm |
| 1 turret: | 12 tools (driven) |
| Rapid traverse X and Z: | 20 m/min |
Equipment:
- 12-station live tooling turret with Y-axis
- Tool probe
- Hydraulic 3-jaw chuck
- Electronic handwheel
- Hydraulic tailstock
- Chip conveyor
- Two pumps and filter
