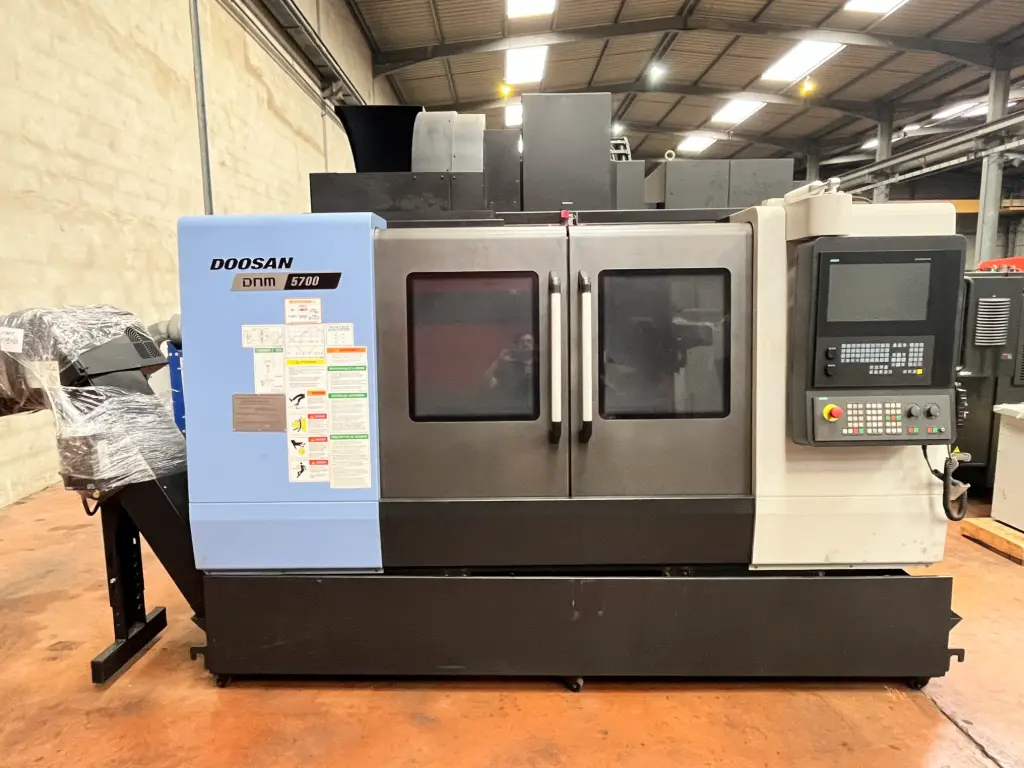

Machining centre DNM 5700
Brand: DOOSAN
Specifications:
| Year: | New |
| CNC type: | SIEMENS 828D-ShopMILL |
| Table dimensions (mm): | 1350 x 570 mm |
| X-axis longitudinal travel (mm): | 1050 mm |
| Y-axis cross travel (mm): | 570 mm |
| Z-axis vertical travel (mm): | 510 mm |
| Spindle speed: | 12,000 rpm |
| Spindle power: | 18.5 kw |
| Through-spindle coolant: | Yes |
| Number of tools: | 30 tools |
| Tool taper: | BT 40 |
| Machine weight: | 6.5 T |
Tool probe
Tooling
The DN Solutions DNM 5700 machining centre sets a new benchmark for performance, precision and industrial productivity. Designed to meet the demands of modern workshops, it combines structural rigidity, advanced machining dynamics and reliability in continuous production. This new generation optimises machining cycles across the board, achieving a high level of quality while reducing downtime. An ideal solution for manufacturers looking for a versatile, robust, high-performance vertical machining centre.
Key features and benefits
High-rigidity structure
Provides excellent machining stability, even under heavy cutting conditions.
Advanced positioning accuracy
Enables reliable, repeatable machining of complex technical parts.
Optimised productivity
Shorter cycle times thanks to improved machine kinematics.
Machining versatility
Suited to a wide range of materials: steel, stainless steel, aluminium and engineering alloys.
Robust industrial design
Built for intensive use in continuous production.
Ergonomics and ease of operation
Optimised operator interface that is quick to learn.
Fits into the modern workshop
Compatible with automated production environments.
Technical data
- Machine type: CNC vertical machining centre
- Make: DN SOLUTIONS
- Model: DNM 5700
- Axis travel: standard DNM series configuration
- Spindle: high-performance, for heavy-duty machining
- CNC control: advanced industrial CNC
- Structure: high-rigidity cast iron frame
- Capacity: one-off and batch machining
- Materials: steel, stainless steel, aluminium, engineering alloys
Industrial applications
The DNM 5700 machining centre is particularly well suited to the following sectors:
- Precision general engineering
- Automotive industry and its suppliers
- Aerospace and technical parts
- Tooling and moulds
- Subcontract machining
- Production of one-off parts and medium batches
- Machining of complex technical components
- Manufacture of high-precision mechanical parts
Why choose this product
The DNM 5700 Generation IV is a strategic choice for workshops looking for a reliable, high-performance vertical machining centre. It combines robustness, precision and productivity to keep output rates on target while ensuring consistent quality in machined parts. It is a solution designed to support modern industrial environments as they scale up.
