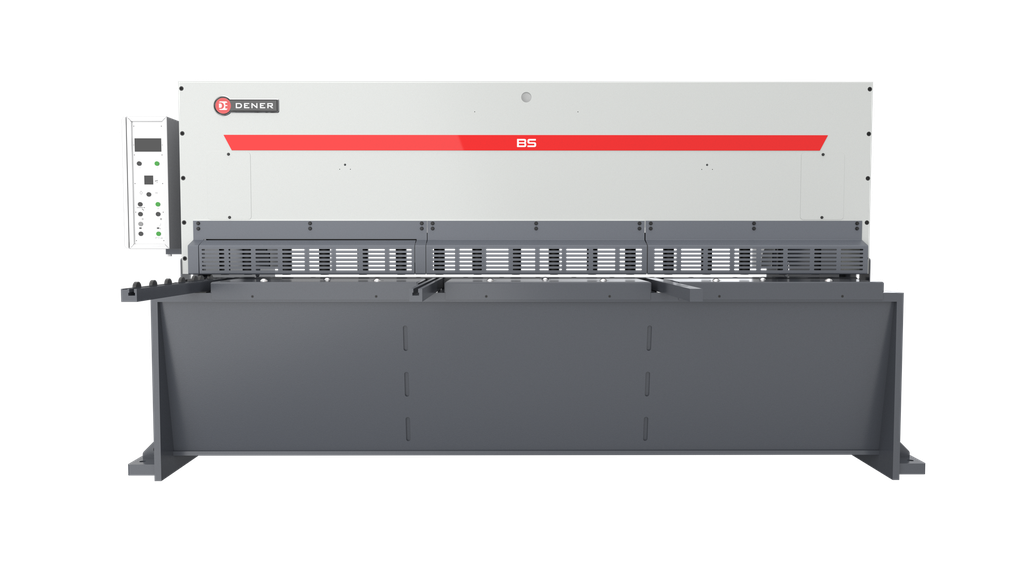

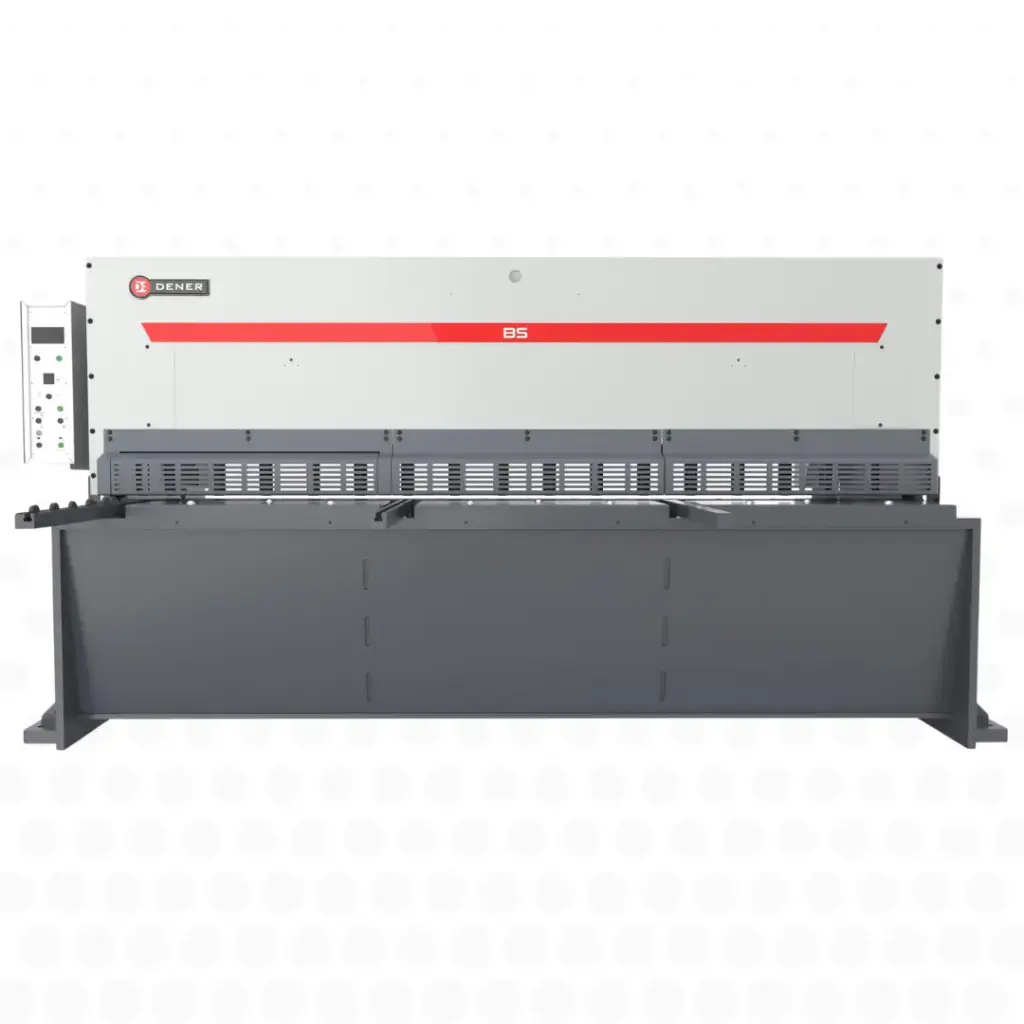

NC type guillotine shear
Marque : DENER
Brand: DENER
Caractéristiques :
- Faster and higher-quality cuts.
- Robust and durable body structure.
- Manual adjustment of blade gap and cutting angle.
- High precision and ease of use.
- Low maintenance costs.
- Enhanced safety protection.
- Reliable components from internationally recognized brands.
- Reduced cutting costs.
- Faster and higher-quality cuts.
- Robust and durable body structure.
- Manual adjustment of blade gap and cutting angle.
- High precision and ease of use.
- Low maintenance costs.
- Enhanced safety protection.
- Reliable components from internationally recognized brands.
- Reduced cutting costs.
NC guillotine shear
The proven welded steel construction provides a solid, precise, and user-friendly structure, trusted by thousands of customers worldwide.
Dener guillotine shears have a cutting capacity for sheets ranging from 6 to 20 mm thick and 2 to 6 meters in length as standard. We also offer machines with higher cutting capacities upon special request.
These shears stand out with several features: an NC controller for rear stop control, manual blade gap adjustment, a motorized rear stop with ball screw, and adjustable front guards.
EHT 071 Control Unit
The EHT 071 is an intuitive control unit for single-axis shears. It offers a memory of 99 programs, each containing up to 20 cutting steps, allowing optimal and user-specific operation.
Ball Table
The ball table at the front allows the operator to easily move the sheet towards the cutting area.
Cutting Line Illumination
The cutting line serves as a guide, enabling the operator to make precise cuts.
Réglage motorisé de l’écart entre lames (option)
The blade gap automatically adjusts according to the sheet thickness. Thanks to this adjustment system, clean, precise, and high-quality cuts are achieved.
Back Gauge System
Motorized back gauge with a precision of ± 0.1 mm.
Removable Pneumatic Rear Support (optional)
Maintains the integrity of the cut sheets.
standard
Equipements
- Dener Ht 071 NC Control Unit
- Hydraulic sheet holders
- Front ball table
- Sheet supports with T-slots and integrated ruler
- Motorized back gauge
- Foot pedal with emergency stop button
- Front anti-pinch guard
- Removable front guard over one meter
Options
- CNC Controller Esa 530
- Motorized blade gap adjustment
- Manual centralized lubrication system
- Pneumatic rear sheet support system
- Laser cutting line
- Anti-pinch light curtain
