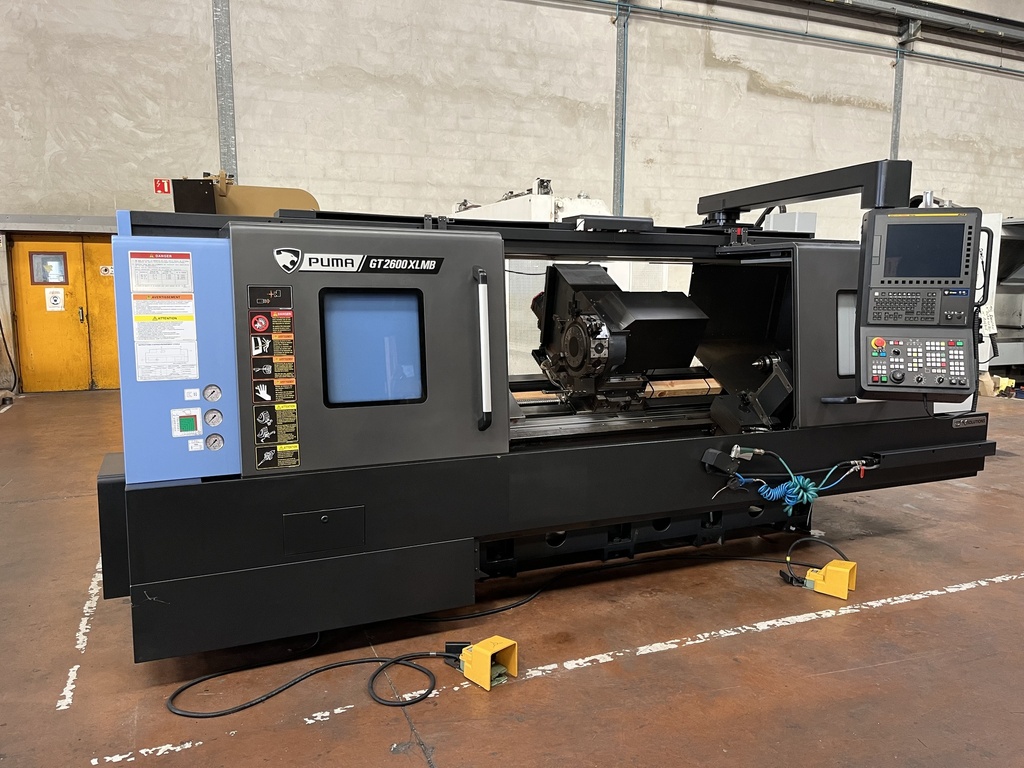

DN SOLUTIONS HORIZONTAL LATHE GT2600 XLMB
Brand: DN SOLUTIONS
Année : 2,023
Référence : PART
Caractéristiques :
| Année: | 2023 |
| Type CNC: | FANUC I SERIE PLUS |
| Longueur usinable: | 1525 mm |
| Diamètre au-dessus du banc: | 630 mm |
| Diamètre au dessus du chariot: | 460 mm |
| Course X: | 265 mm |
| Course Z: | 1625 mm |
| Alésage de broche: | 102 mm |
| 1 Tourrelle: | 12 outils (motorisé) |
| Vitesse: | 2500 tr/mn |
| Puissance de broche: | 26 kW |
| Poids machine: | 6100 kg |
| Dimensions: | 4960 x 2198 x 2030 mm |
| Contre pointe: | Numérique / Cône CM4 |
| Vitesse outils tournant axe C: | 5000 trs/min / puissance 5.5/7.5 kw |
Type:
C-axis
CNC Type: FANUC I Series
Max. machining diameter: 410 mm
Max. swing over bed: 630 mm
Max. swing over cross slide: 460 mm
Max. machining length: 1525 mm
X-axis travel: 265 mm
Z-axis travel: 1625 mm
Rotating tools speed: 5000 rpm
Rotating tools power: 5.5 / 1.1 kW
Spindle speed: 2500 rpm
Spindle motor power: 26 / 22 / 18 kW
Bar capacity: 102 mm
Rapid feed X-axis: 24 m/min
Rapid feed Z-axis: 30 m/min
Spindle nose: A2-11
Chuck diameter: 305 mm
Max. bar diameter: 102 mm
Max. machining length: 1525 mm
Number of turrets: 1
Number of turret stations: 12
Turning tool section: 25 x 25 mm
Boring bar diameter: 40 mm
Tailstock: Programmable
Tailstock quill diameter: 100 mm
Tailstock quill stroke: 100 mm
Floor space (L x W x H): 4960 x 2198 x 2030 mm
Weight: 6,100 kg
Other:
Like new – Year 2023
Steady rest x1
Tool holders x6
Internal Reference:
PART
