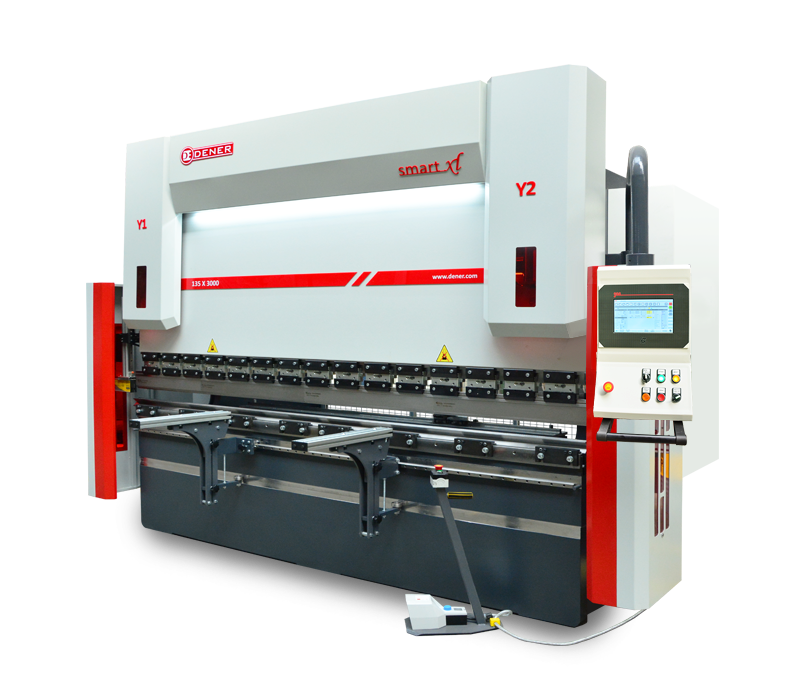

PRESSE PLIEUSE CNC NEUVE DENER SMART XL 40175
Référence : T22012
Caractéristiques :

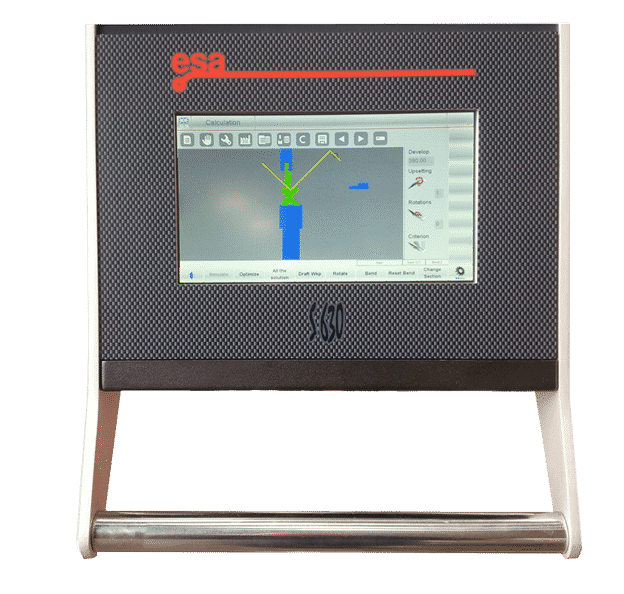

| Commande numérique: | ESA S 630 TACTILE 2D |
| Nombre d'axes: | 4 AXES Y1 Y2 X R |
| Dimensions: | 4800x1750x3050 mm |
| Puissance moteur: | 22 kW |
| Longueur pliage maxi (mm): | 4050 mm |
| Course réglable coulisseau (mm): | 350 mm |

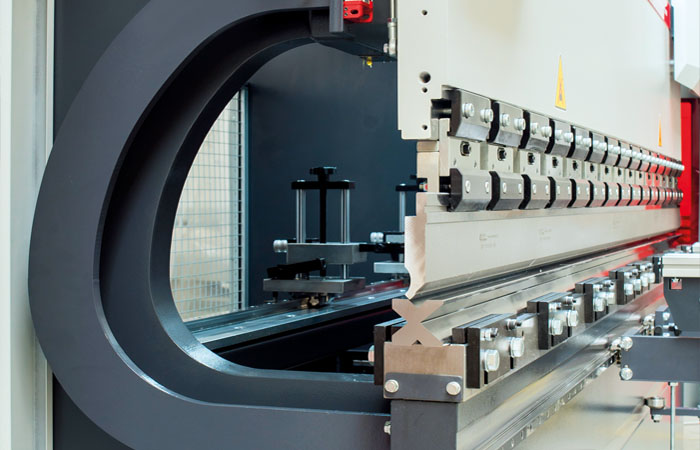

| Col de cygne (mm): | 450 mm |
| Passage entre montants (mm): | 3550 mm |
| Force nominale (T): | 175 T |
| Poids: | 13250 kg |
| Vitesse d'approche (mm/s): | 150 mm/sec |
| Vitesse de travail (mm/s): | 10 mm/sec |
| MACHINE NEUVE: | DISPONIBILITE RAPIDE |
Équipements:

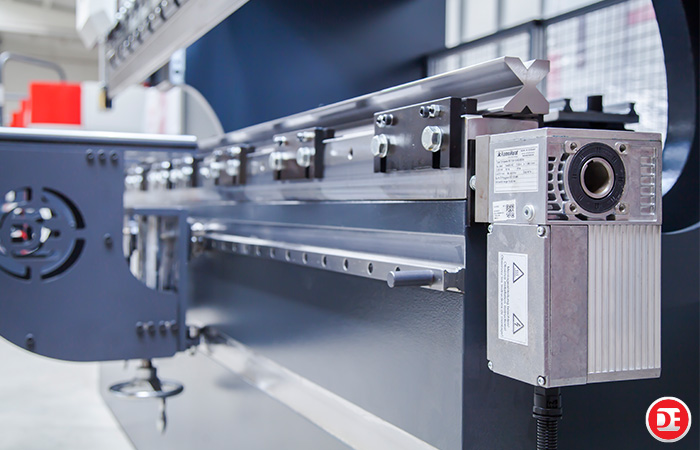

- Dispositif de bombage motorisé

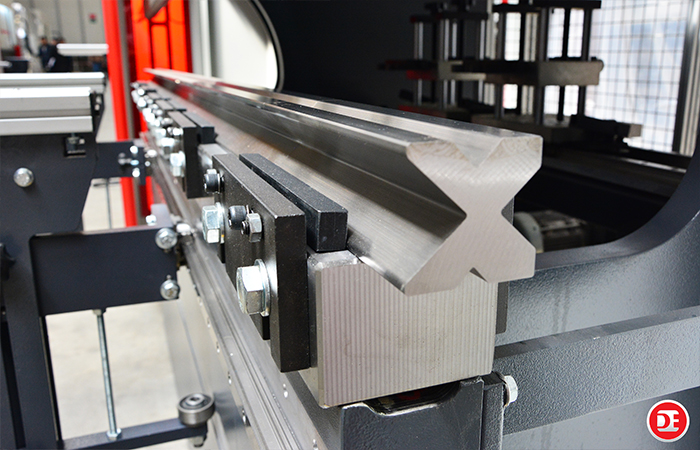

- Poinçons et matrice type Amada-Promecam
- Bridage rapide type Amada

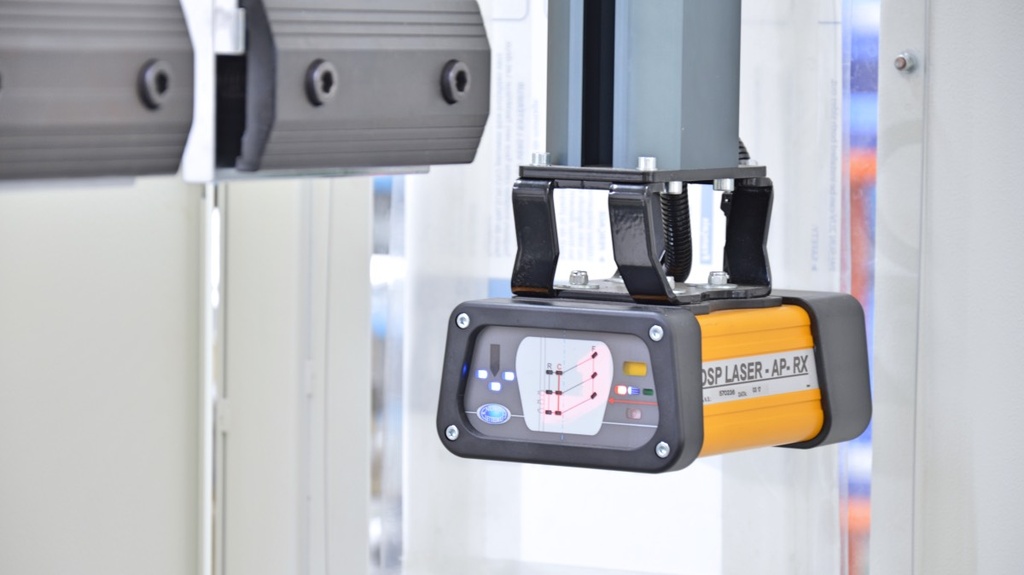

- Protection Laser DSP
- 2 Supports avants
Équipements:
- Dispositif de bombage motorisé
- Poinçons et matrice type Amada-Promecam
- Bridage rapide type Amada
- Protection Laser DSP
- 2 Supports avants
This product is no longer available.
Internal Reference:
T22012
