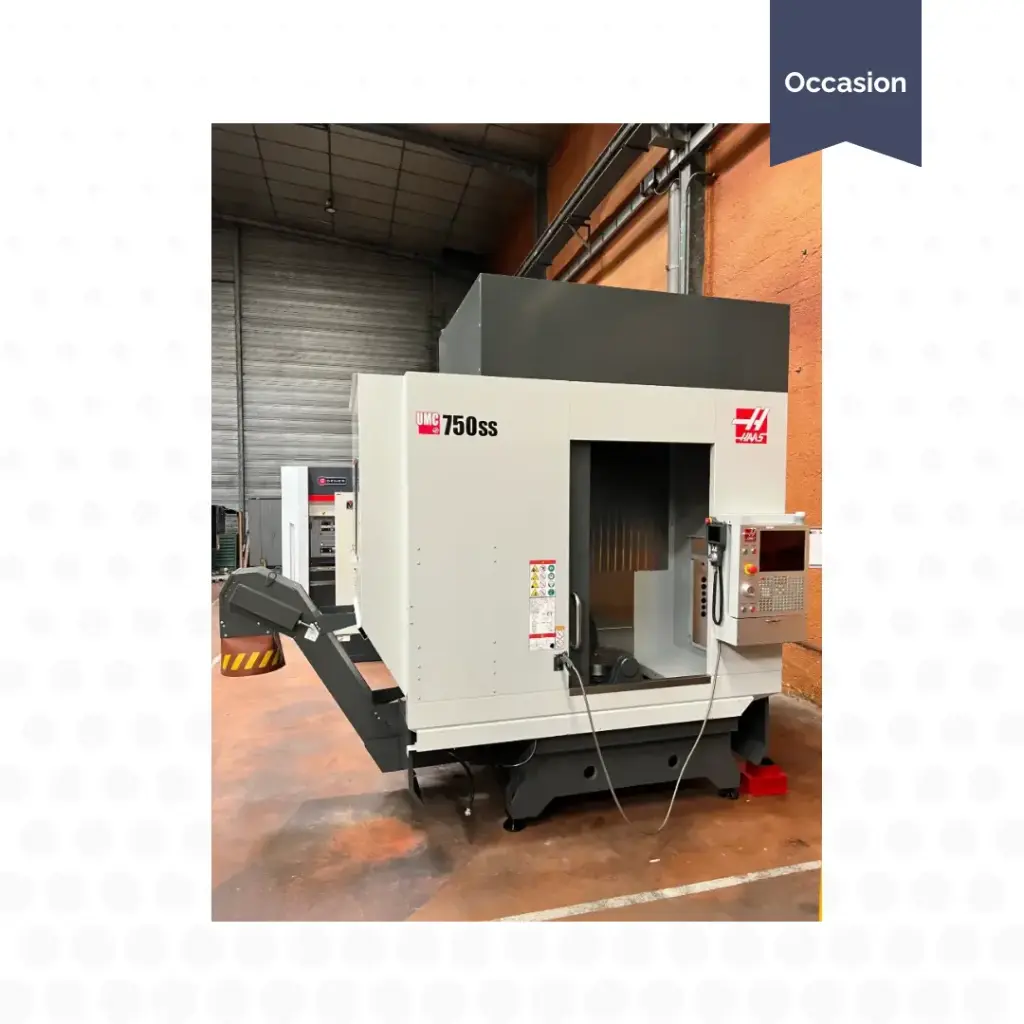

Haas UMC 750 SS 5-Axis Machining Centre (2022)
Brand: HAAS
Model: UMC 750SS
Year: 2,022
Reference: T26023
Specifications:
| Milling machine type: | 5-axis vertical machining centre |
| Table dimensions (mm): | Diameter 500 mm |
| X-axis longitudinal travel (mm): | 762 |
| Z-axis vertical travel (mm): | 508 |
| Y-axis cross travel (mm): | 508 |
| C-axis travel: | 360° |
| C-axis rotation speed: | 179°/second |
| Automatic feeds: | 30.5 m/min |
| Spindle taper: | BT 40 |
| Spindle speed (rpm): | 12 000 |
| Spindle motor power (kW): | 22 |
| - Overall dimensions L x W x H (mm): | 427 x 235 x 280 |
| Spindle nose to table distance: | 102 - 610 mm |
| Tool magazine capacity: | 50 |
| Chip conveyor: | Yes |
| Machine weight (t): | 6.5 |
| Tooling: | Yes |
| Handheld remote control: | Yes |
Internal Reference:
T26023
