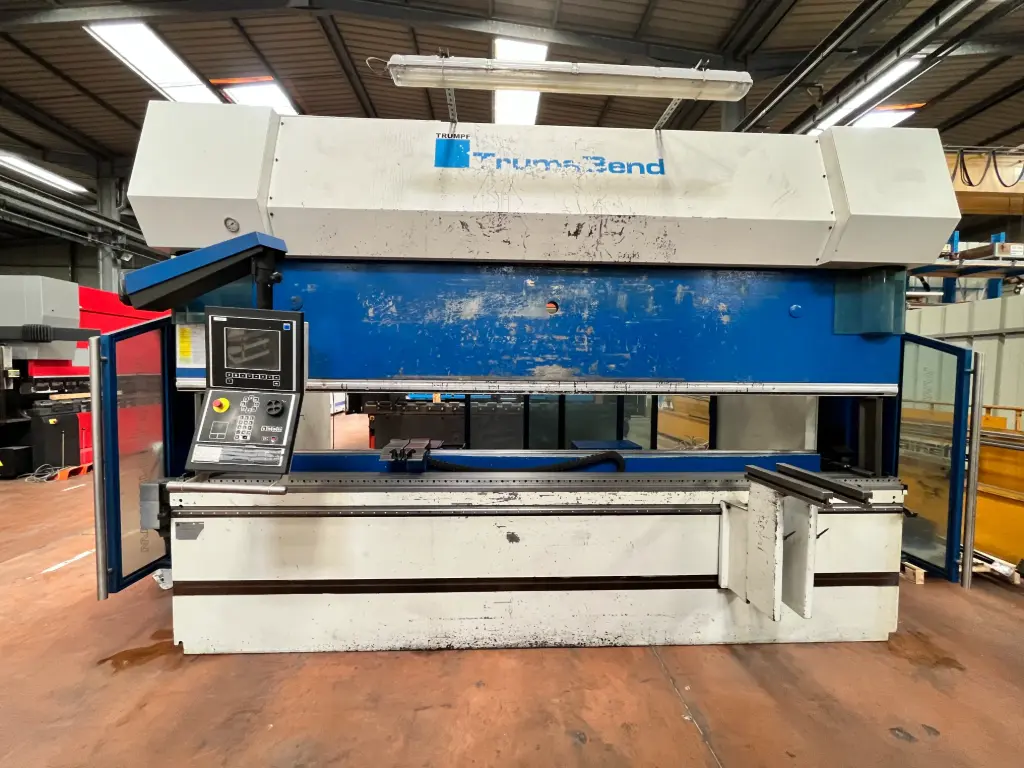

Press brake TRUMPF TrumaBend V200 (4 m)
Brand: TRUMPF
Model: V200 TRUMABEND
Reference: T26043
Specifications:
| Press technology: | Hydraulic |
| CNC control: | DA 65 CNC |
| Nominal force (t): | 200 tonnes |
| Max. bending length (mm): | 4080mm |
| Number of axes: | 7 AXES Y1 Y2 X X1 Z1 Z2 R |
| Adjustable ram stroke (mm): | 365 mm |
| CROWNING TABLE : | Yes |
| Distance between columns (mm): | 3700 mm |
| Quick-release punch clamping: | Yes, hydraulic |
| Throat depth (mm): | 410 mm |
| Working speed (mm/s): | 10 mm/s |
| Main motor power (kW): | 22 kw |
| Machine weight (t): | 18 000 kg |
| Machine dimensions (L x W x H): | 4620 x1980 x 2885 mm |
Equipment:
- The front of the machine will be repainted
Equipment:
-
Internal Reference:
T26043
