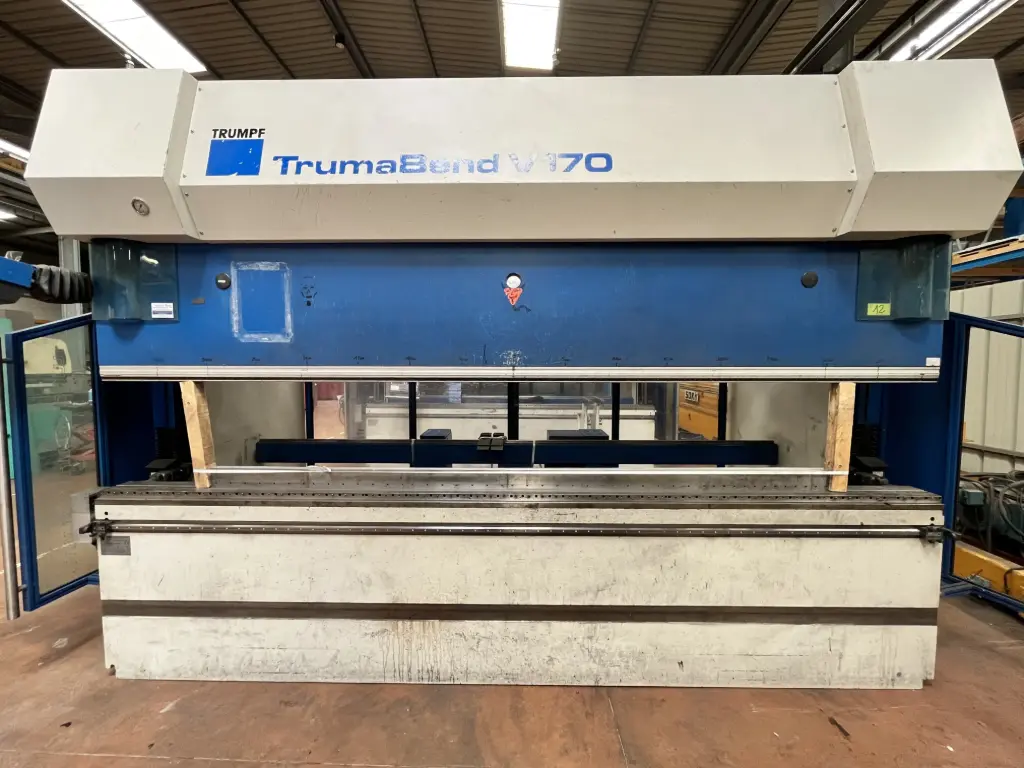

Press brake TRUMPF TrumaBend V170 (4 m)
Brand: TRUMPF
Model: V170 TRUMABEND
Reference: T26048
Specifications:
| Press technology: | Hydraulic |
| Year: | 2003 |
| CNC control: | DA 65 CNC |
| Nominal force (t): | 170 tonnes |
| Max. bending length (mm): | 4080mm |
| Adjustable ram stroke (mm): | 365 mm |
| Distance between columns (mm): | 3680 mm |
| Throat depth (mm): | 410 mm |
| Working speed (mm/s): | 10 mm/s |
| Hydraulic tool clamping: | YES |
| CROWNING TABLE : | Yes |
| Main motor power (kW): | 20 kw |
| - Overall dimensions L x W x H (mm): | 4620 x1980 x 2885 mm |
| Machine weight (t): | 18 000 kg |
Equipment:
- extensive tooling package
- The machine will be repainted
Equipment:
-
Internal Reference:
T26048
