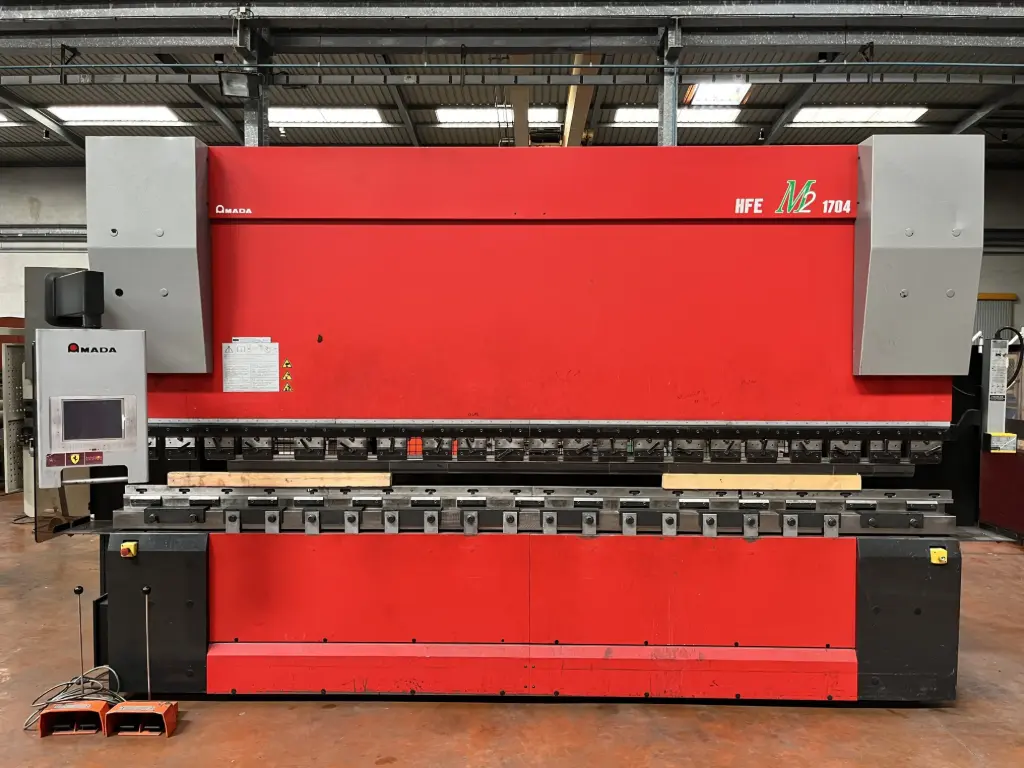

Press brake AMADA HFE M2 1704
Brand: AMADA
Model: HFE M2 1704
Reference: T26049
Specifications:
| Press technology: | Hydraulic |
| Year: | 2011 |
| CNC control: | AMADA |
| Nominal force (t): | 170 tonnes |
| Max. bending length (mm): | 4050 mm |
| Number of axes: | 8 AXES Y1 Y2 X1 X2 R1 R2 Z1 Z2 |
| Adjustable ram stroke (mm): | 200 mm |
| Distance between columns (mm): | 3600 mm |
| Throat depth (mm): | 420 mm |
| Approach speed (mm/s): | 100 mm/s |
| Main motor power (kW): | 16.5 KW |
| - Overall dimensions L x W x H (mm): | 5625 × 2620 × 2890 mm |
| Machine weight (t): | 14 000 KG |
| Quick-release punch clamping: | Yes |
| CROWNING TABLE : | AMADA COMPOSITE BEAM |
Equipment:
- LARGE TOOLING PACKAGE
Equipment:
-
Internal Reference:
T26049
