XF type Hydraulic press brake type
Marque : DENER
Brand: DENER
Caractéristiques :
- Compact design with limited footprint.
- Optimized installation and maintenance.
- Precise and high-quality bending.
- Modern design.
- Versatile machine suitable for a wide range of applications.
- Bending length of 3000 mm, available in 125-ton or 200-ton models.
- Affordable purchase cost, enabling rapid return on investment.
- Globally recognized hydraulic and electrical components.
- Compact design with limited footprint.
- Optimized installation and maintenance.
- Precise and high-quality bending.
- Modern design.
- Versatile machine suitable for a wide range of applications.
- Bending length of 3000 mm, available in 125-ton or 200-ton models.
- Affordable purchase cost, enabling rapid return on investment.
- Globally recognized hydraulic and electrical components.
Xf type hydraulic
pressbrake

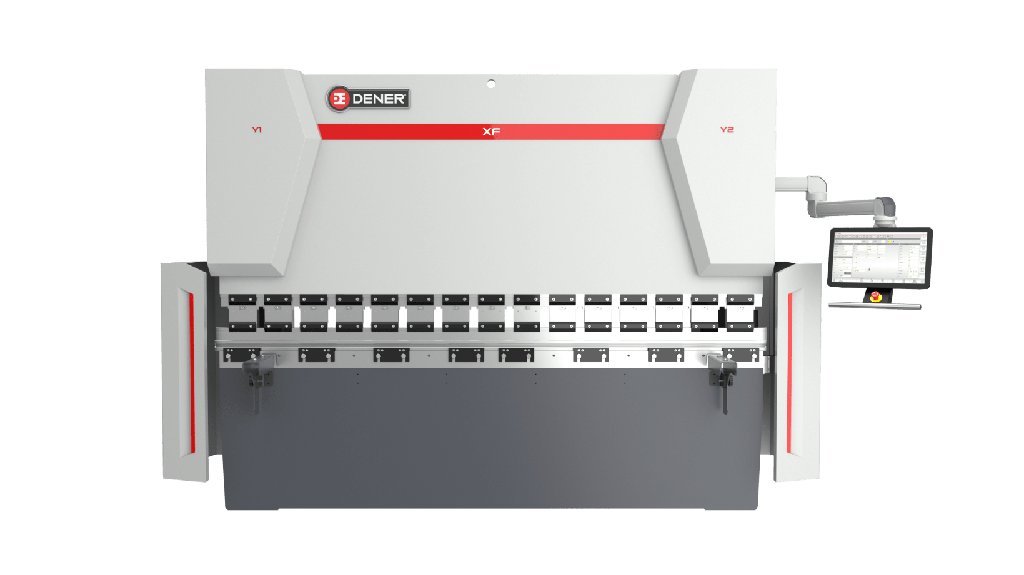

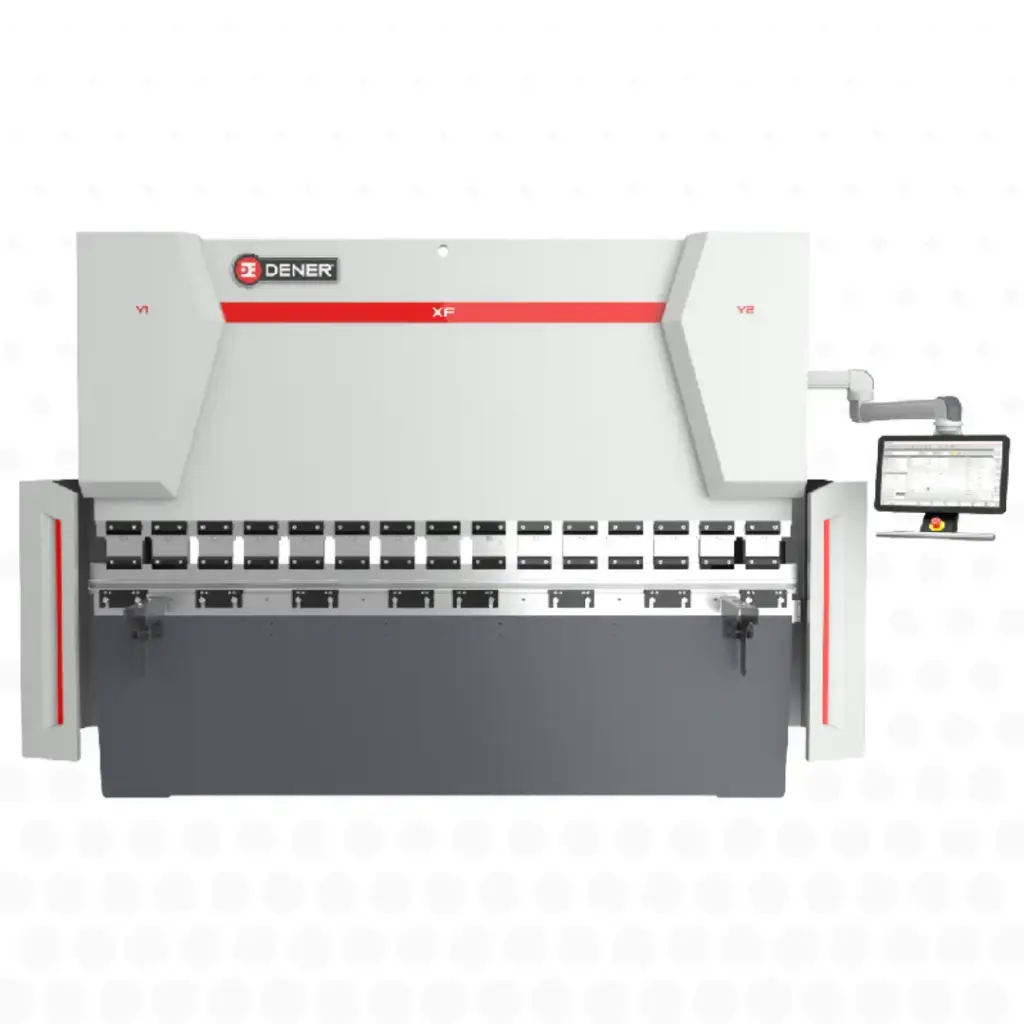

The Dener XF model is a compact hydraulic press brake with a modern design, engineered to suit all types of applications and production environments.
- Throat depth: 300 mm
- Ram stroke: 200 mm
- Ram opening: 450 mm
- Usable bending length: 3020 mm
- Distance between uprights: 2650 mm
- Working height: 900 mm
- Available tonnages: 125 tons or 200 tons
It delivers precise bending thanks to its robust design and high-quality materials, ensuring enhanced repeatability and reliability.
standard
Equipements
3-axis machine: Y1, Y2, X
Mechanical clamping for punch/die, PROMECAM/AMADA type
ESA S 640 2D CNC control with 15" touchscreen
- 2 backgauge fingers
- Manually adjustable crowning table
- Bending precision ensured by dual reading scales
- Side and rear access doors secured by sensors
- Remote foot pedal with emergency stop
Options
Esa S 875 W type CNC control
Motorized crowning
2 front sheet supports
Quick clamping for punches
- Backgauge with X, R axes
- Backgauge with X, R, Z1, Z2 axes
