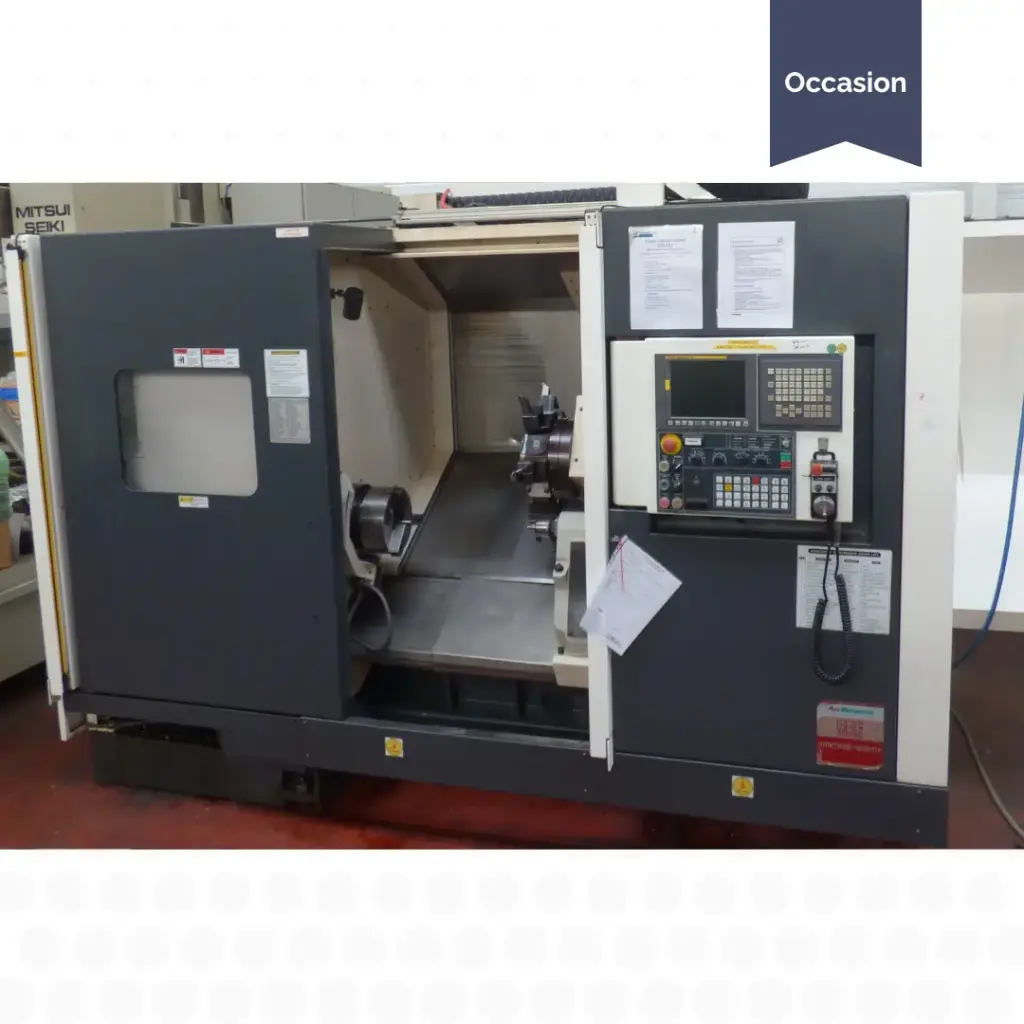

CNC lathe ACE VANTAGE 800MY
Brand: ACE VANTAGE
Specifications:
| Technology: | CNC |
| Year: | 2016 |
| CNC type: | FANUC SERIES OiTD |
| Distance between centres (mm): | 1025 mm |
| Max. machining length (mm): | 800 mm |
| Swing over bed (mm): | 640 mm |
| X-axis travel (mm): | 300 mm |
| Z-axis travel (mm): | 800 mm |
| Y-axis travel: | +55/-75 mm |
| Spindle speed (rpm): | 4000 rpm |
| Bar capacity: | 51 mm |
| Number of turrets: | 1 |
| Number of turret stations: | 12 |
| - Overall dimensions L x W x H (mm): | 3690 x 1900 x 2500 mm |
| Machine weight: | 6 T |
Equipment:
- Conveyor
- Automatic doors
- 3 static tool holders
- 3 live tool holders
