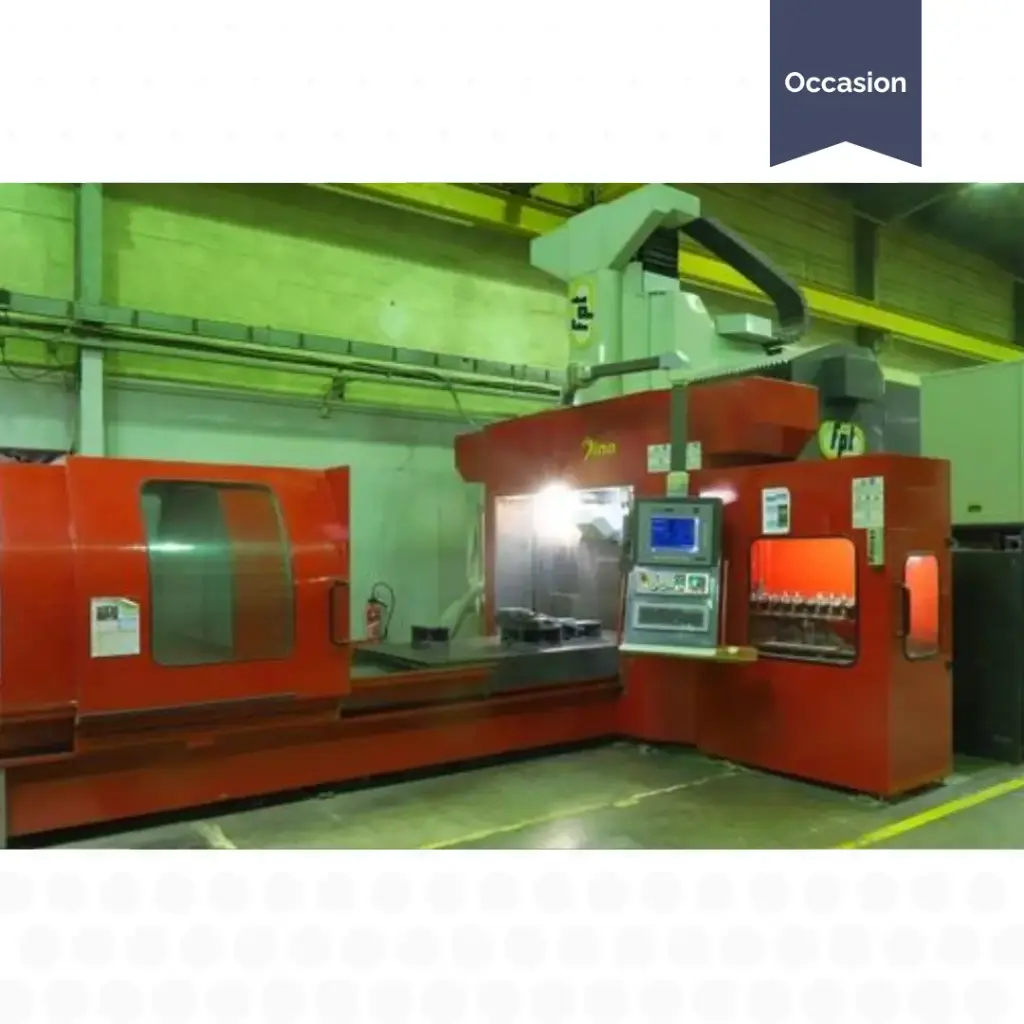

5-axis gantry vertical machining centre FPT DINO
Brand: FPT
Reference: D00090
Specifications:
| Year: | 2003 |
| CNC type: | FINDIA C20 X POWER CNC |
| Table dimensions (mm): | 2500 x 1200 |
| X-axis longitudinal travel (mm): | 2200 |
| Y-axis cross travel (mm): | 1600 |
| Z-axis vertical travel (mm): | 1000 |
| Spindle speed (rpm): | 34000 |
| Tool magazine capacity: | 30 |
| Number of tools: | 30 |
Equipment:
- Chip conveyor, left-hand discharge
- Vertical roughing head with 10,000 rpm electrospindle, HSK-A63 spindle taper, 34 kW
- 5-axis universal milling head, 34,000 rpm, HSK-E40, C axis +270°/-90°, 17 kW
- 30-tool magazine (positions 1 to 12 for the HSK-A63 vertical head and 13 to 30 for the HSK-E40 5-axis head)
Internal Reference:
D00090
