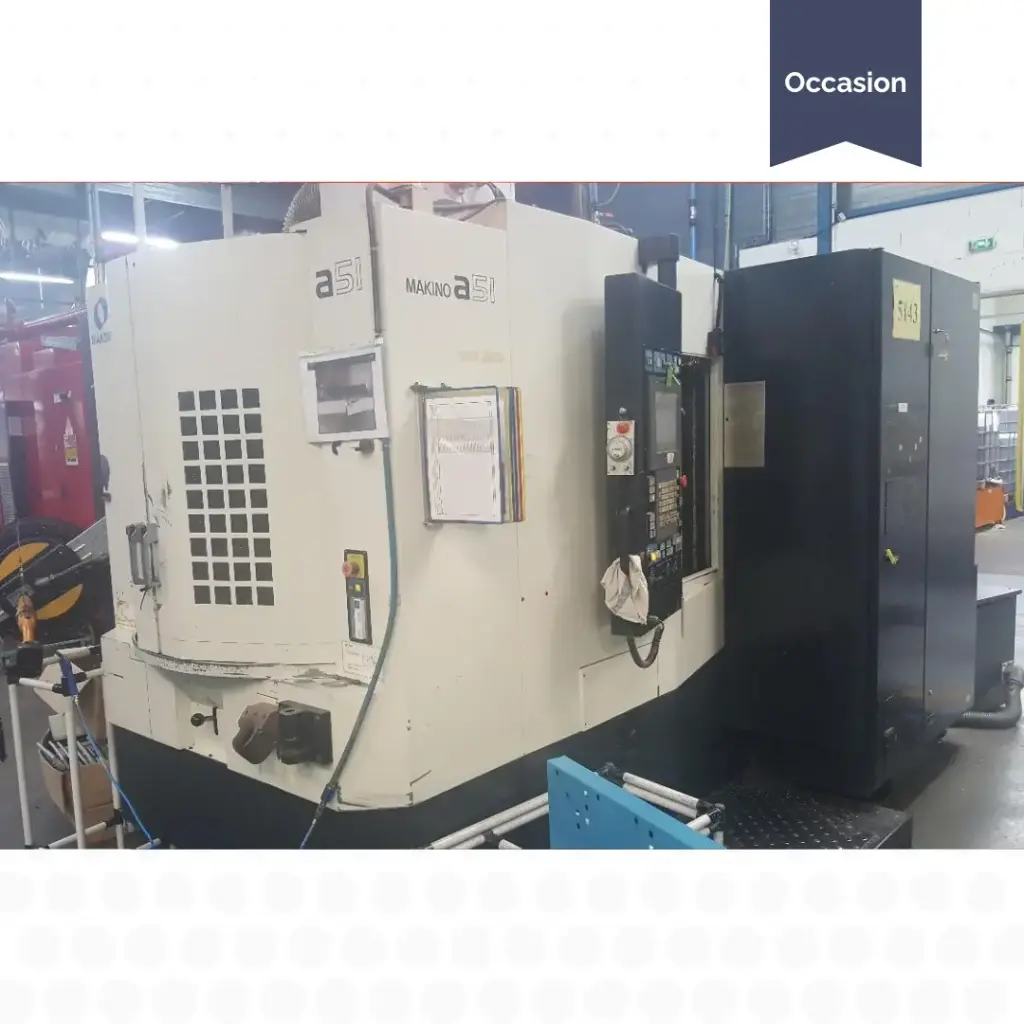

Horizontal machining centre MAKINO A51

Brand: MAKINO

Reference: D00205

Specifications:

Year: 2006
CNC type: FANUC 310is-A
Pallet dimensions (mm): 400 x 400
Number of pallets: 2
X-axis longitudinal travel (mm): 560
Y-axis cross travel (mm): 560
Z-axis vertical travel (mm): 600
Spindle speed (rpm): 20000
Spindle motor power (kW): 18.5/11
Number of tools: 60
Tool taper: HSK 63
Table to spindle nose distance (mm): 70
Maximum workpiece weight (kg): 400
X-axis rapid traverse (m/min): 50
Y-axis rapid traverse (m/min): 50
Z-axis rapid traverse (m/min): 50
Through-spindle coolant: Yes
​

Equipment:
- Continuous 4th axis
- 48 additional workpiece coordinate systems
- Die and Mold package: Super GI high-speed processor for fast, accurate machining of mould parts.
- Pallet coding on 4 faces
- 2 additional pallets, 400 x 400 mm
- Oil mist extraction system
- Air dryer
- Scraper-type chip conveyor
