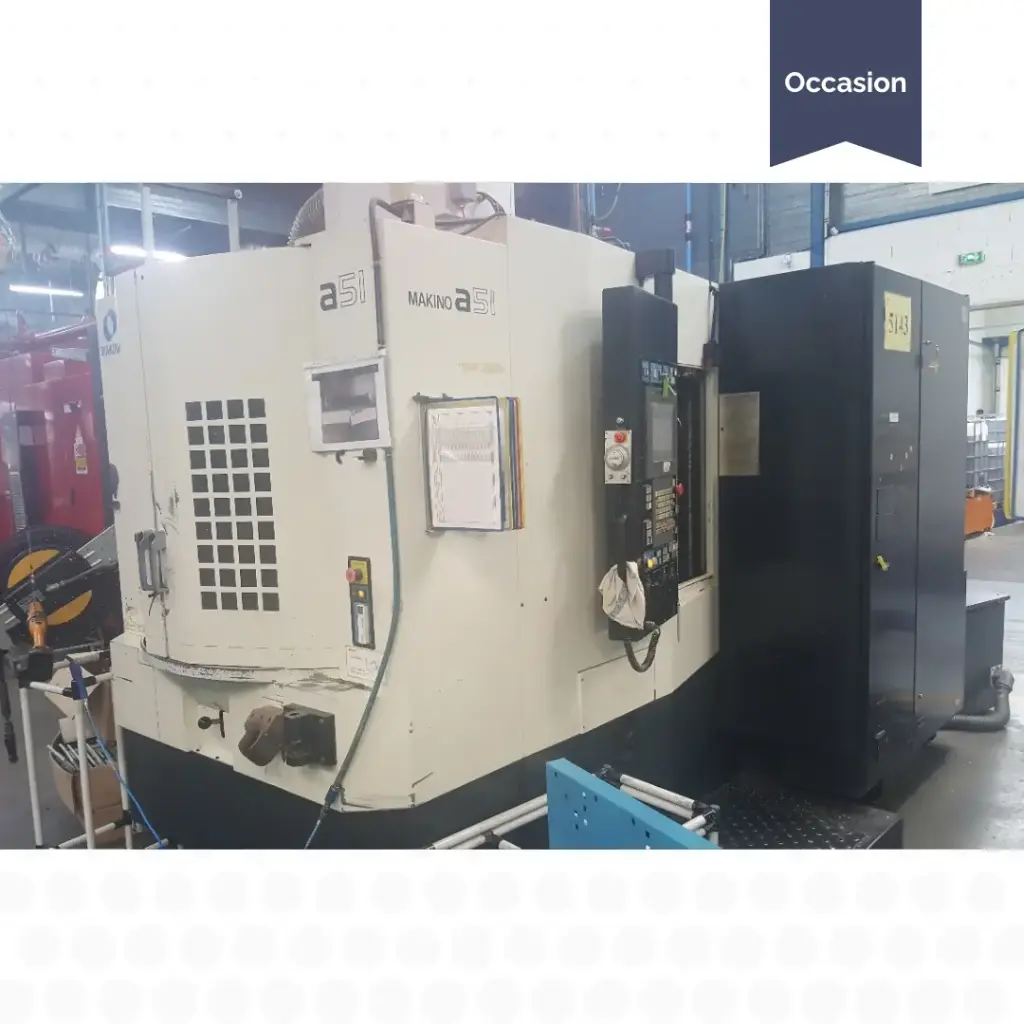

Horizontal machining centre MAKINO A51
Brand: MAKINO
Reference: DOO205
Specifications:
| CNC type: | FANUC 310is-A |
| Number of pallets: | 2 |
| Number of tools: | 60 |
| Table dimensions (mm): | 400x400 |
| X-axis longitudinal travel (mm): | 560 |
| Y-axis cross travel (mm): | 560 |
| Z-axis vertical travel (mm): | 600 |
| Spindle speed (rpm): | 20000 |
| Spindle motor power (kW): | 18.5/11 |
| B-axis: | 360000 |
| Maximum workpiece weight : | 400 kg |
| Tool taper: | HSK 63 |
Year 2006
Equipment:
- Through-spindle coolant, 30 bar
- Continuous 4th axis
- 48 additional workpiece coordinate systems
- Die and Mold package: Super GI high-speed processor for fast, accurate machining
- Mould parts.
- Pallet coding on 4 faces
- 2 additional pallets, 400 x 400 mm
- Oil mist extraction system
- Air dryer
- Scraper-type chip conveyor
Internal Reference:
DOO205
