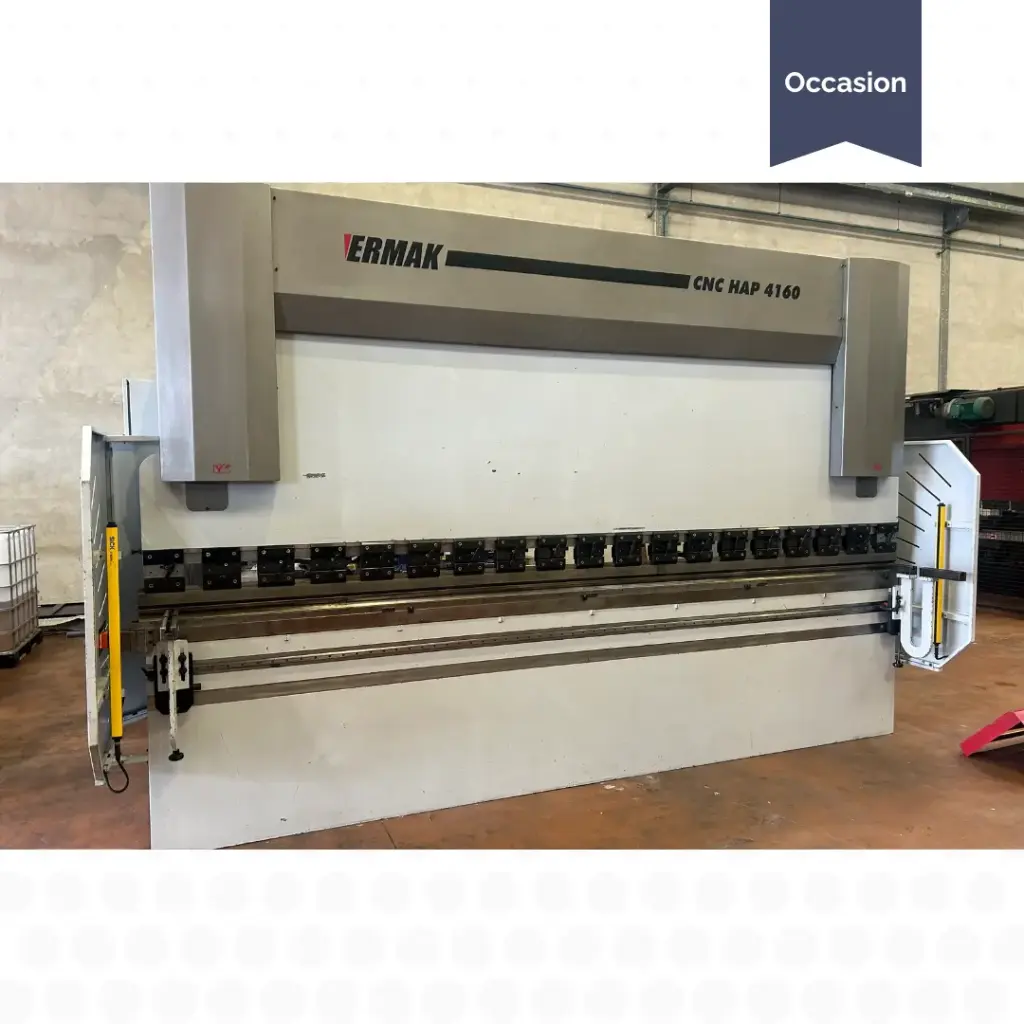

Ermak HAP 4160 CNC Press Brake (160 t, 4 m)
Brand: ERMAKSAN
Year: 2,010
Specifications:
| Press technology: | Hydraulic |
| Year: | 2010 |
| Nominal force (t): | 160 T |
| Max. bending length (mm): | 4100 mm |
| CNC control: | CYBELEC DNC 60 |
| Number of axes: | 3 AXES Y1 - Y2 - X |
| Adjustable ram stroke (mm): | 200 mm |
| Distance between columns (mm): | 3500 mm |
| Throat depth (mm): | 400 mm |
| Approach speed (mm/s): | 80 mm/s |
| Working speed (mm/s): | 8 mm/s |
| Motor power: | 15 kw |
| Overall dimensions: | 4800 x 2170 x 2780 mm |
| Machine weight: | 12 000 kg |
| CROWNING TABLE : | Manual |
| Back gauge travel: | 800 mm |
| Front and rear guards: | Light curtain |
