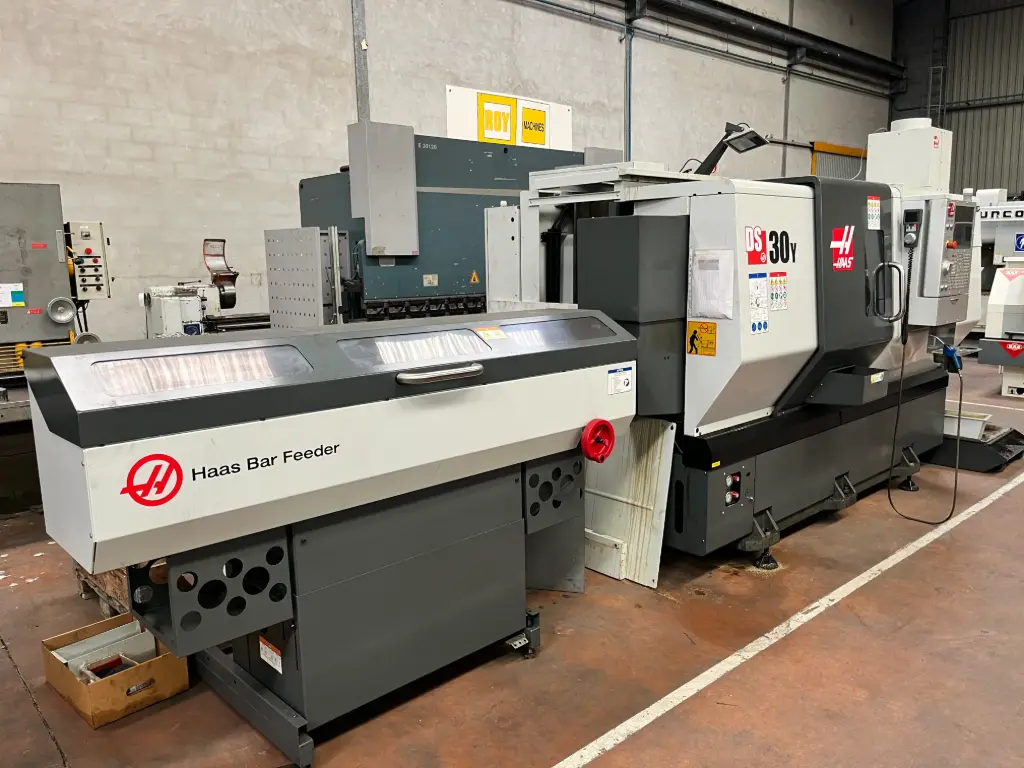

Used twin-spindle lathe HAAS DS30Y

Specifications:

Technology:	CNC
Year:	2020
CNC type:	HAAS (FANUC)
Distance between centres (mm):	826
Max. machining length (mm):	826
Swing over bed (mm):	533
Max. machining diameter (mm):	349
Chuck diameter (mm):	254
X-axis longitudinal travel (mm):	239
Z-axis vertical travel (mm):	826
Y-axis cross travel (mm):	+/-51mm
Spindle speed (rpm):	4500
Spindle motor power (kW):	22,4
Spindle nose:	A2 -6"
Spindle bore (mm):	88
Bar capacity (mm):	76
Number of turrets:	1
Number of turret stations:	12 tools
Spindle 2 speed (rpm):	4000
Spindle 2 motor power:	4000
Spindle 2 bar capacity:	58,7mm
Spindle 2 chuck size:	210
- Overall dimensions L x W x H (mm):	4340x 2290 x 2490
Machine weight (t):	5534

Equipment:
1 bar feeder
1 automatic bar feeder with spindle liners
3 axial live tools
7 radial live tool holders
9 static tool holders
1 BMT 65 tool holder
1 3-jaw chuck on the main spindle
1 3-jaw chuck on the sub-spindle
1 collet chuck for larger diameters
1 Autoblock F66 collet chuck
1 additional chuck
1 chip conveyor
1 oil mist extractor
1 workpiece probe
1 tool probe
1 automatic parts unloader

Notes:

2 live tool holders are out of order
Probe: keep an eye on hook no. 2

Twin-spindle lathe HAAS DS30Y
