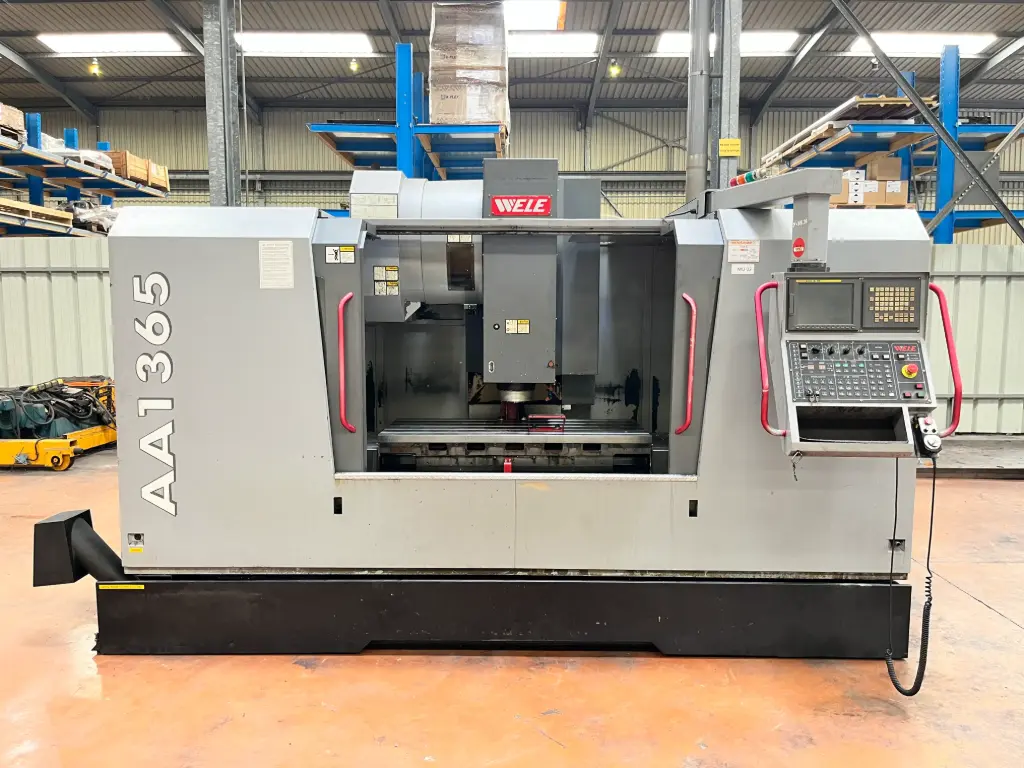

Machining centre WELE AA 1365
Brand: WELE
Model: AA 1365
Reference: K00041
Specifications:
| Year: | 2008 |
| CNC type: | FANUC SERIES 18I-MB |
| Table dimensions (mm): | 1450 X 650 mm |
| Maximum workpiece weight (kg): | 1300 kg |
| X-axis longitudinal travel (mm): | 1300 mm |
| Y-axis cross travel (mm): | 650 mm |
| Z-axis vertical travel (mm): | 600 mm |
| Spindle speed (rpm): | 8000 rpm |
| Spindle motor power (kW): | 11 KW |
| Through-spindle coolant: | Yes |
| Number of tools: | 24 TOOLS |
| Tool taper: | BT 40 |
| - Overall dimensions L x W x H (mm): | 3650 mm x 3100 mm x 2940 mm |
| Machine weight (t): | 7600 kg |
EQUIPMENT
20 bar through-spindle coolant
Gearbox
Chip conveyor
Manual Guide
Internal Reference:
K00041
