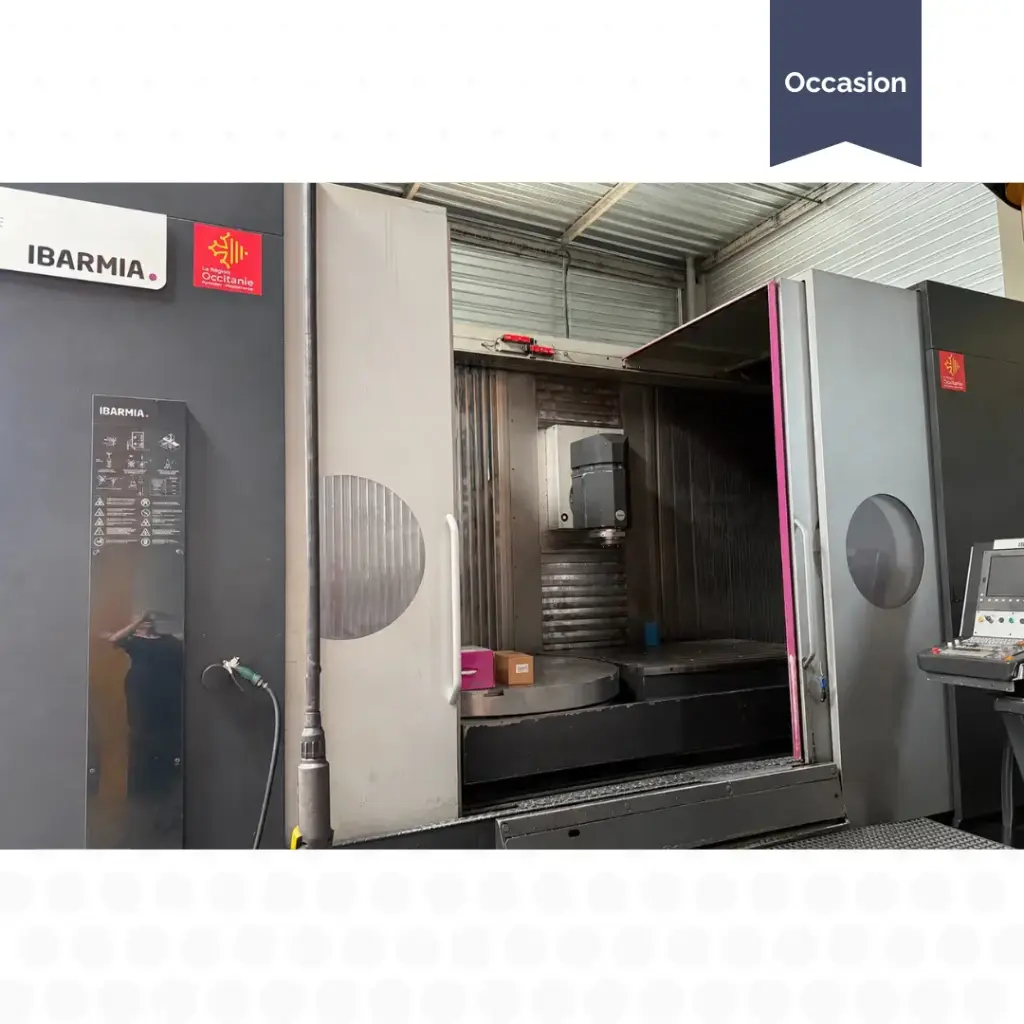

5-axis machining centre IBARMIA ZHV60/3000 EXTREME

Brand: IBARMIA

Model: ZHV60/3000 EXTREME

Year: 2,018

Reference: K00047

Specifications:

Year: 2018
CNC type: HEIDENHAIN ITNC 640
Table dimensions (mm): 3840 x 1150
Maximum swing diameter on integrated table (C-axis) (mm): 1600
X-axis longitudinal travel (mm): 3000
Y-axis cross travel (mm): 1100
Z-axis vertical travel (mm): 1100
B-axis travel (tilting head):: +/-105
Maximum workpiece weight (kg): 2000 Kg/m2
Spindle speed (rpm): 7000
Spindle motor power (kW): 75
Through-spindle coolant: Yes
Number of tools: 60
Tool taper: 50
- Overall dimensions L x W x H (mm): 6500 x 6200 mm
Machine weight (t): 32
​

Equipment:
- Tool probe
- Workpiece probe
- 70 bar high-pressure coolant unit with paper filtration
- Add-on 4th-axis rotary table, 500 mm dia., with tailstock
- 2 risers, 900 and 700 mm dia.
- Large number of tool holders
