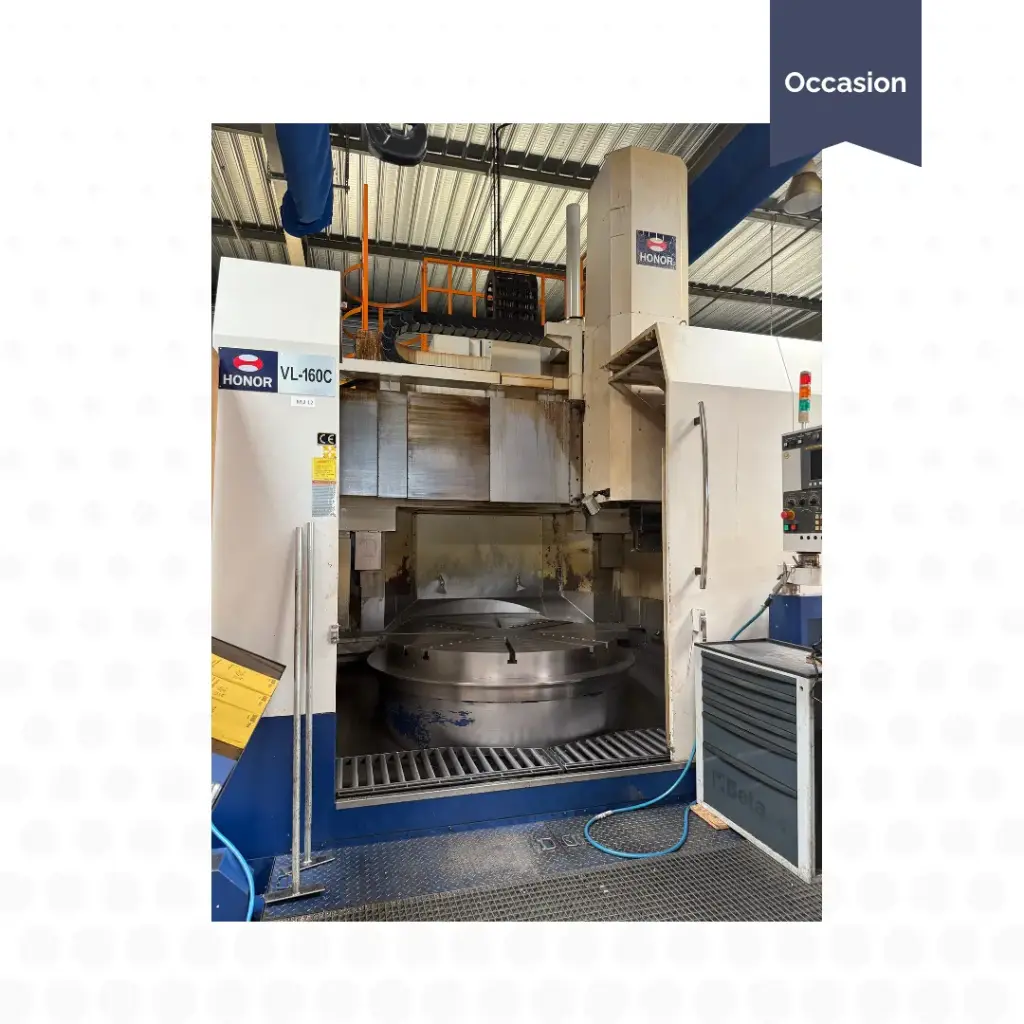

Vertical CNC lathe HONOR VL-160C
Brand: HONOR
Model: VL-160C
Reference: K00048
Specifications:
| Year: | 2013 |
| CNC type: | FANUC Oi T |
| Maximum turning diameter (mm): | 2000 |
| Table diameter (mm): | 1600 |
| Ram to table distance (mm): | 650-1450 |
| Maximum turning height (mm): | 1250 |
| Maximum workpiece weight (kg): | 8000 |
| Table speed (rpm): | 3 à 250 |
| Table motor power (kW) (continuous/30 min): | 37/45 |
| Tool magazine: | ATC |
| Number of tools: | 12 |
| Ram cross-section (mm): | 220 x 220 |
| Overall dimensions L x W x H (mm): | 6565 x 4050 x 5200 |
| Machine weight (t): | 27,5 |
| Total power (kVA): | 75 |
Fanuc 0iTD CNC control
Manual 4-jaw chuck
Date of manufacture 06/2013
Loading/unloading jib crane
Tooling package and tool holders
Large-dimension measuring instrument
Internal Reference:
K00048
