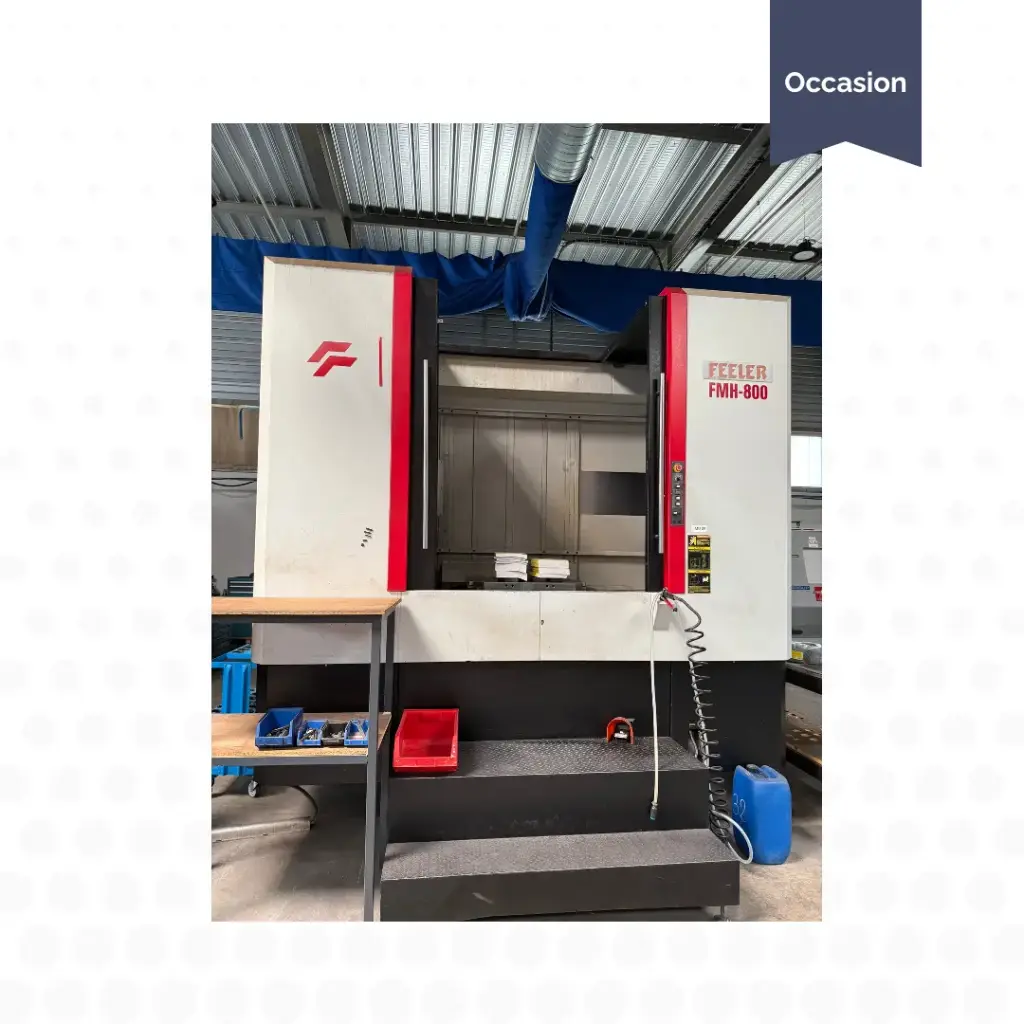

Horizontal machining centre FEELER FMH-800
Brand: FEELER
Model: FMH-800
Year: 2,002
Reference: K00059
Specifications:
| Year: | 2012 |
| CNC type: | FANUC 31iB |
| Pallet dimensions (mm): | 800 x 800 |
| Number of pallets: | 2 |
| X-axis longitudinal travel (mm): | 1300 |
| Y-axis cross travel (mm): | 1020 |
| Z-axis vertical travel (mm): | 1100 |
| Spindle speed (rpm): | 6000 |
| Spindle motor power (kW): | 22/26 |
| Through-spindle coolant: | 20 bar |
| Number of tools: | 60 |
| Tool taper: | 50 |
| - Overall dimensions L x W x H (mm): | 4880 × 7600 × 3000 |
| Machine weight (t): | 29 |
Equipment:
- Continuous 4th axis
- Extensive tooling
Internal Reference:
K00059
