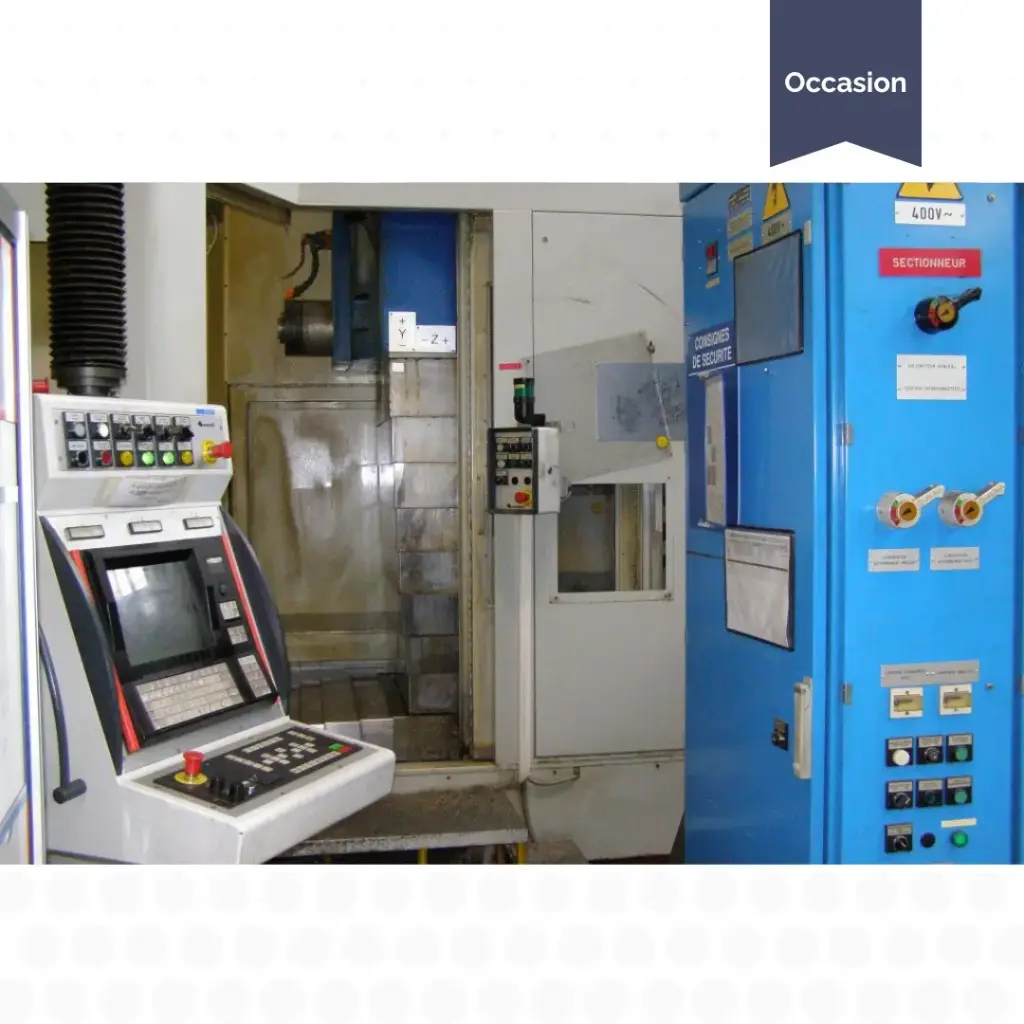

5-axis horizontal machining centre MANDELLI M7 H8000
Brand: MANDELLI
Reference: M1410254
Specifications:
| Pallet dimensions (mm): | 630 x 800 mm |
| X-axis longitudinal travel (mm): | 1040 |
| Y-axis cross travel (mm): | 1180 |
| Z-axis vertical travel (mm): | 1050 |
| Spindle speed (rpm): | 6000 |
| Tool taper: | ISO 50 |
Equipment:
- Ball screws with preloaded double nut on the linear axes
- Linear scales on the linear axes and encoders on the rotary axes
- Workpiece wash-down provision (shower system)
- ISO 630 tilting unit - High-pressure internal/external coolant, 25 bar
- 40 l/min with self-cleaning filter and 1,200-litre tank
Internal Reference:
M1410254
