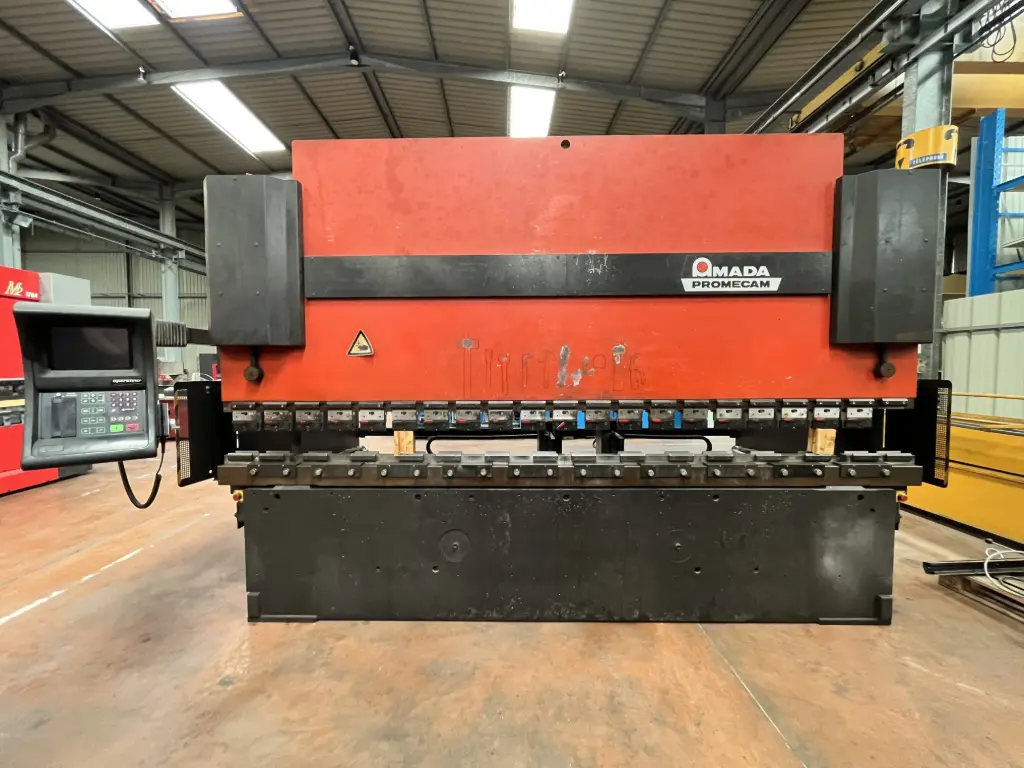

Press brake AMADA HFBO 220-40
Brand: AMADA
Model: HFBO
Specifications:
| Press technology: | Hydraulic |
| CNC control: | OPERATEUR II |
| Nominal force (t): | 220 tonnes |
| Max. bending length (mm): | 4200 mm |
| Number of axes: | 8 AXES Y1 Y2 X1 X2 R1 R2 Z1 Z2 |
| Adjustable ram stroke (mm): | 180 mm |
| Distance between columns (mm): | 3700 mm |
| Throat depth (mm): | 420 mm |
| Working speed (mm/s): | 10 mm/s |
| Main motor power (kW): | 17 KW |
| - Overall dimensions L x W x H (mm): | 4610 x 2200 x 3070 mm |
| Machine weight (t): | 16 000 kg |
