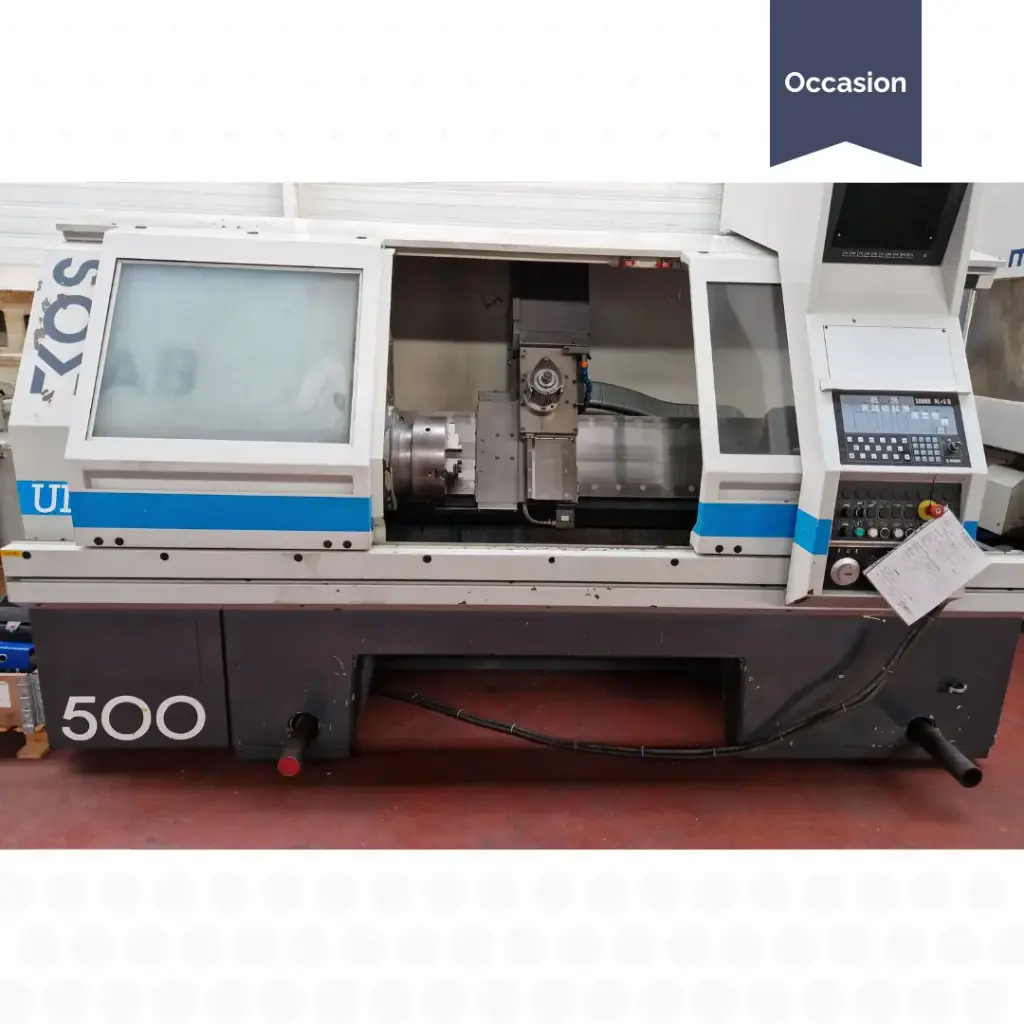

Somab Unimab 500 CNC Lathe
Brand: SOMAB
Specifications:
| Technology: | CNC |
| CNC type: | SOMAB PL + S 3 |
| Distance between centres (mm): | 300 mm |
| Max. machining length (mm): | 1270 (spindle nose to tailstock = 1500) mm |
| Swing over bed (mm): | 500 mm |
| Max. machining diameter (mm): | 430 mm |
| X-axis travel (mm): | 272 mm |
| Z-axis travel (mm): | 1300 mm |
| Spindle speed (rpm): | 60-2500 rpm |
| Spindle bore (mm): | 72 mm |
| Spindle motor power (kW): | 18/24.2 Kw |
| Number of turrets: | 1 |
| Number of turret stations: | 1 |
| Overall dimensions L x W x H (mm): | 3400 x 2205 x 2200 mm |
| Machine weight (t): | 7.3 T |
