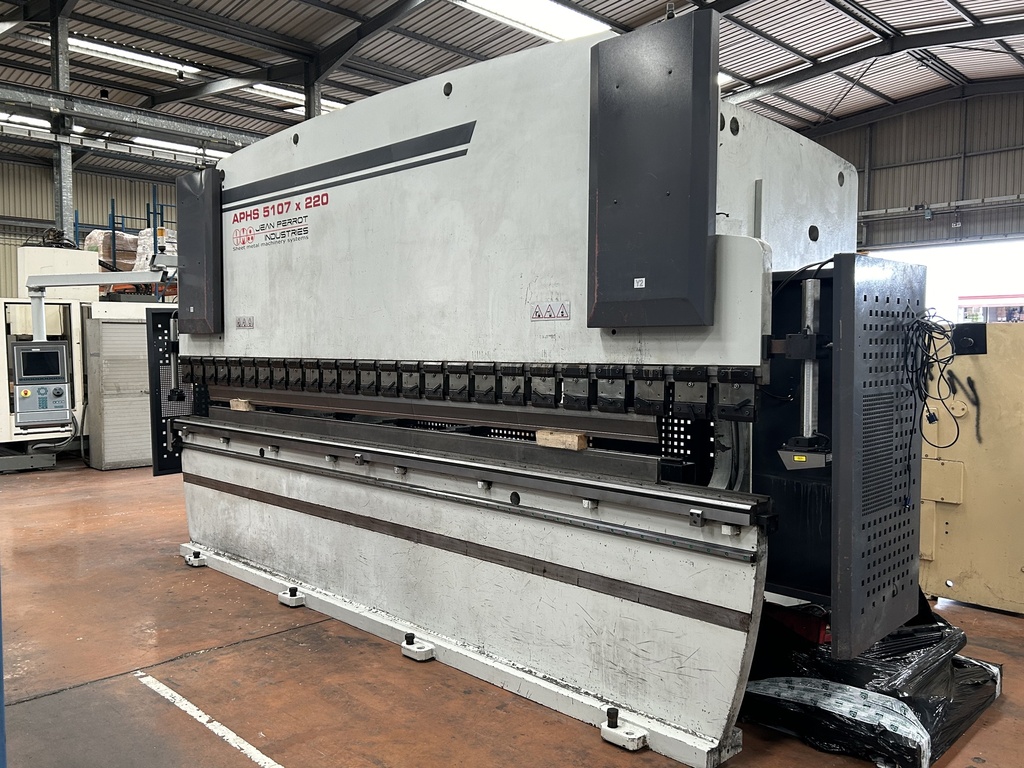

MODELE PRESSE PLIEUSE (copie)
Brand: JEAN PERROT
Reference: T24002
Specifications:
| Press technology: | Hydraulic |
| Year: | 2009 |
| Nominal force (t): | 220 tonnes |
| Max. bending length (mm): | 5100 mm |
| CNC control: | DELEM DA66W |
| Number of axes: | 4 AXES Y1 Y2 X R |
| Adjustable ram stroke (mm): | 260 mm |
| Distance between columns (mm): | 4100 mm |
| Throat depth (mm): | 520 mm |
| Approach speed (mm/s): | 80 mm/s |
| Working speed (mm/s): | 10 mm/s |
| Motor power: | 18.5 kW |
| Overall dimensions: | 6000 X 2530 X 3150 mm |
| Machine weight: | 22000 kg |
Equipement:
-
Equipement:
-
This product is no longer available.
Internal Reference:
T24002
