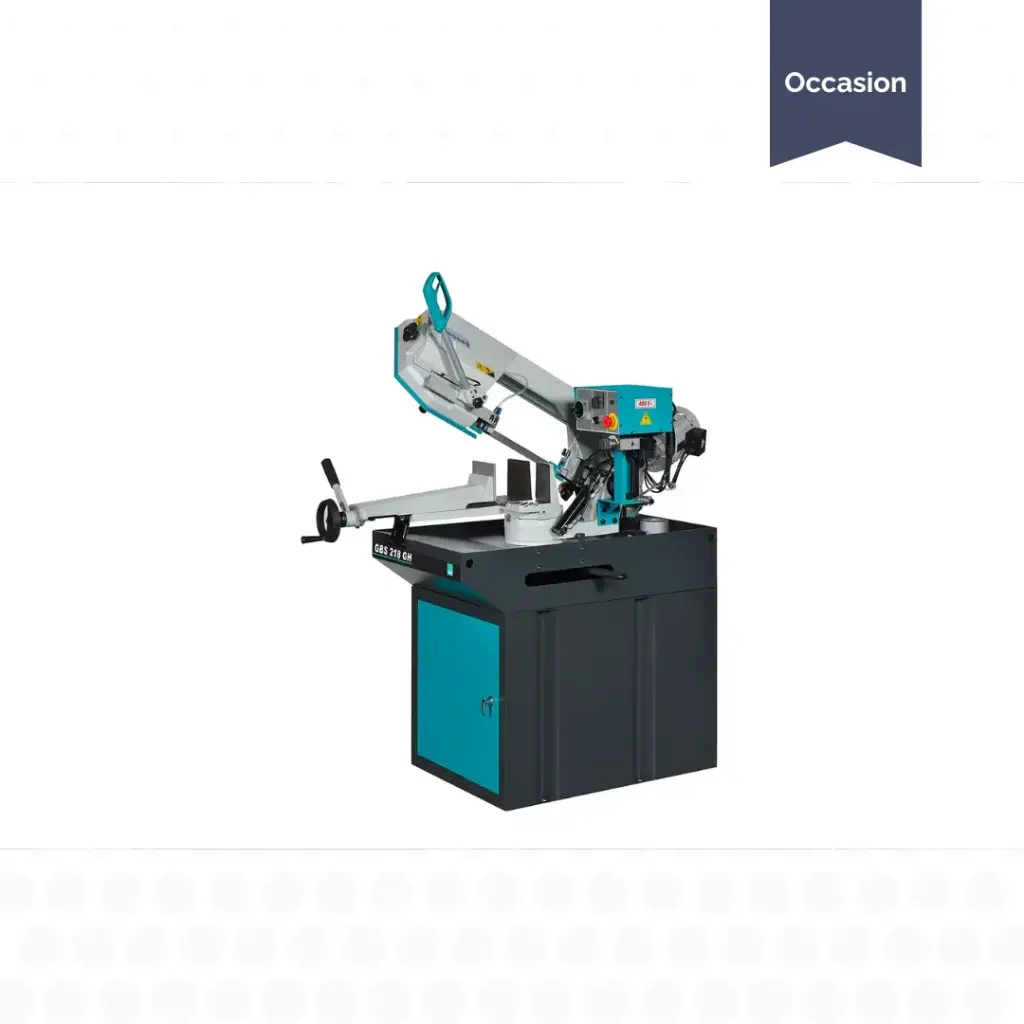

IMET GBS 218 GH gravity-feed horizontal band saw
Brand: IMET
Model: GBS 218 GH
Reference: T25062
Specifications:
| Saw type: | Gravity-operated |
| Mitre cutting: | Yes |
| Capacity at 90°: round/square/rectangular (W x H): | 220 mm / 210 mm / 230x185 mm |
| Capacity at +45°: round/square/rectangular (W x H): | 150 mm / 150 mm / 150x210 mm |
| Capacity at +60°: round/square/rectangular (W x H): | 90 mm / 90 mm / 90x100 mm |
| Blade dimensions: | 2455 x 27 x 0,9 mm |
| Machine dimensions (L x W x H): | 680 x 1400 x 1800 mm |
| Total installed power: | 1,2 kW |
| Machine weight: | 255 kg |
The GBS 218 GH is IMET's controlled-descent band saw. Versatile and easy to use, the GBS 218 GH is ideal for small and medium batch engineering production and for light and medium structural steelwork. The machine makes mitre cuts up to 60° to the left.
Internal Reference:
T25062
