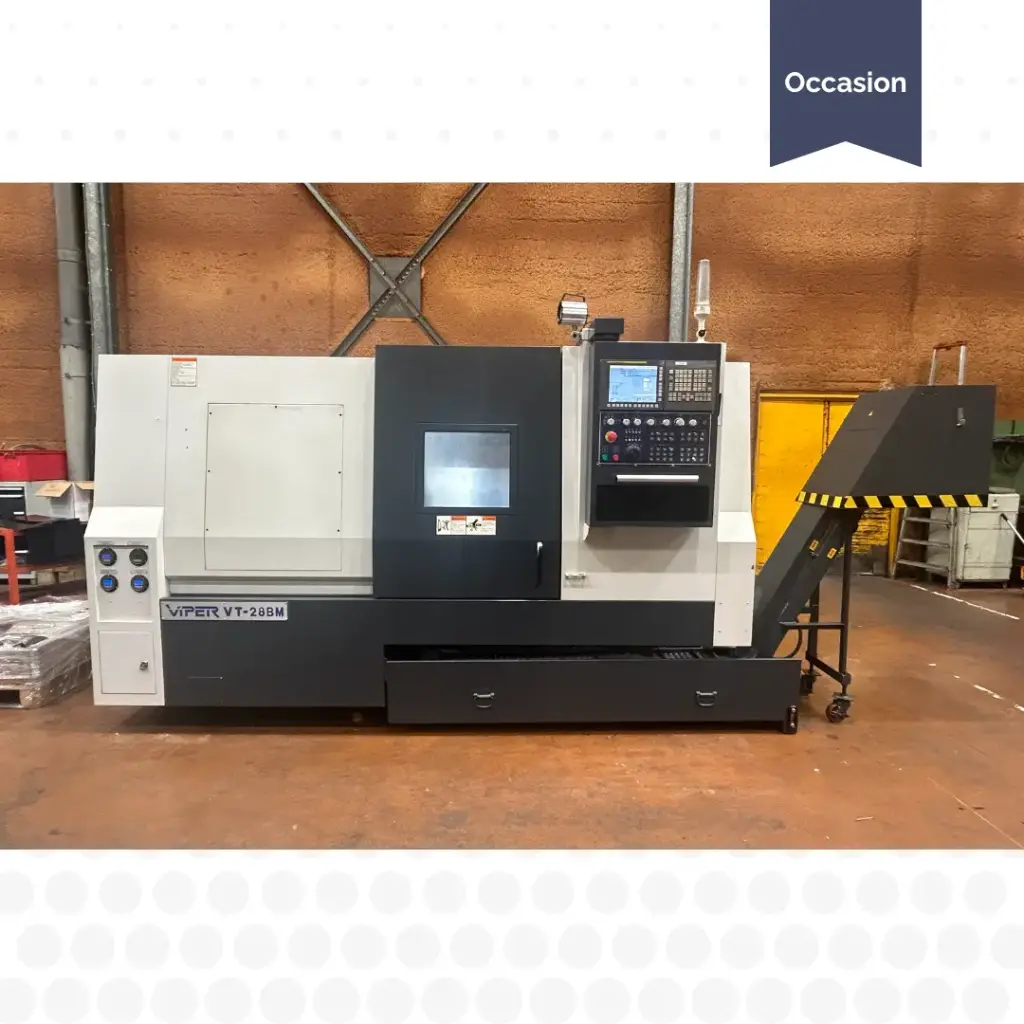

Alex Tech VT 28 BM Lathe

Brand: ALEX-TECH

Model: VIPER 28 BM

Year: 2,017

Reference: T26003

Specifications:

Technology: C-axis
Year: 2017
CNC type: FANUC SERIES Oi-TF
Conversational programming: YES, MANUAL GUIDE
Distance between centres (mm): 540 mm
Max. machining length (mm): 500 mm
Swing over bed (mm): 480 mm
Max. machining diameter (mm): 480 mm
Chuck diameter (mm): 305 mm
Hydraulic chuck clamping: YES
X-axis travel (mm): 240+40
Z-axis travel (mm): 550 mm
Spindle speed: 3500 rpm
Spindle bore (mm): 87 mm
Bar capacity: 77 mm
Spindle motor power : 26 KW
Number of turrets: 1
Number of turret stations: 12 tools
Overall dimensions: 4964 X 1951 X 2028 mm
Machine weight: 6900 KG
Additional tooling: large tooling package
​
