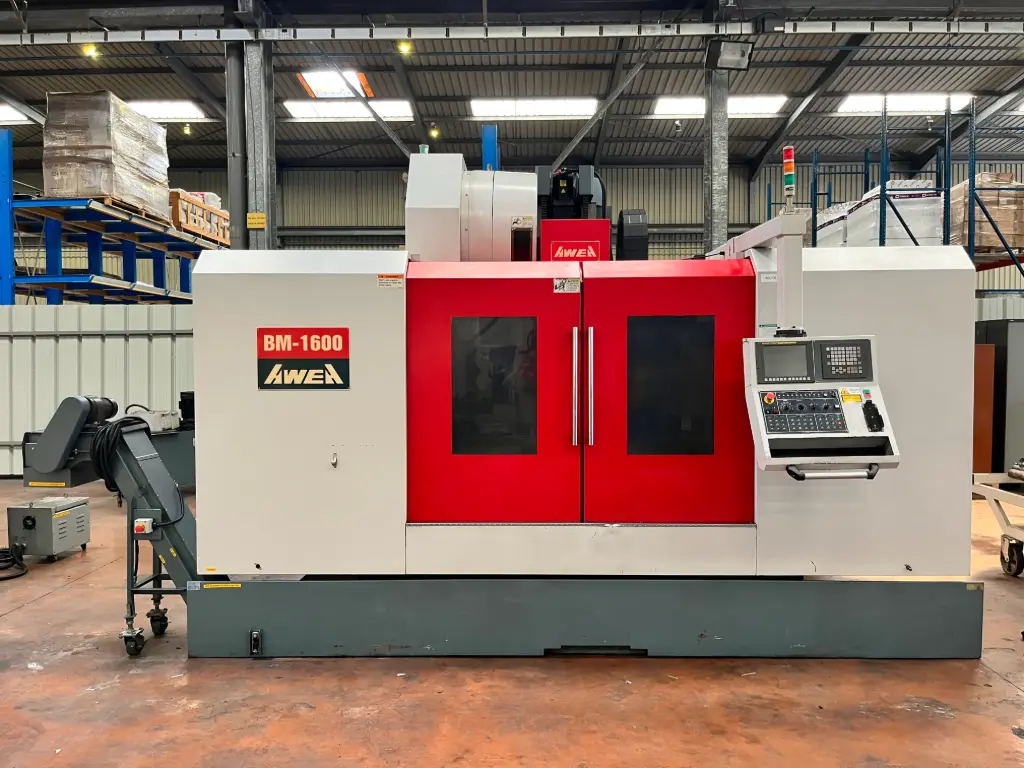

Vertical machining centre AWEA BM 1600
Brand: AWEA
Model: BM 1600
Reference: K00045
Specifications:
| Year: | 2008 |
| CNC type: | FANUC Oi MC |
| Table dimensions (mm): | 1700 x 800 mm |
| X-axis longitudinal travel (mm): | 1600 |
| Y-axis cross travel (mm): | 800 |
| Z-axis vertical travel (mm): | 800 |
| Spindle speed (rpm): | 6000 rpm |
| Spindle motor power (kW): | 15 kw |
| Through-spindle coolant: | Yes |
| Number of tools: | 24 TOOLS |
| Tool taper: | BT 50 |
| - Overall dimensions L x W x H (mm): | 4400 x 2995 x 3200 mm |
| Machine weight (t): | 16 000 kg |
Equipment:
- Chip conveyor
- Gearbox
- 20 bar high-pressure through-spindle coolant
- Box guideways
- Air-conditioned electrical cabinet
Internal Reference:
K00045
