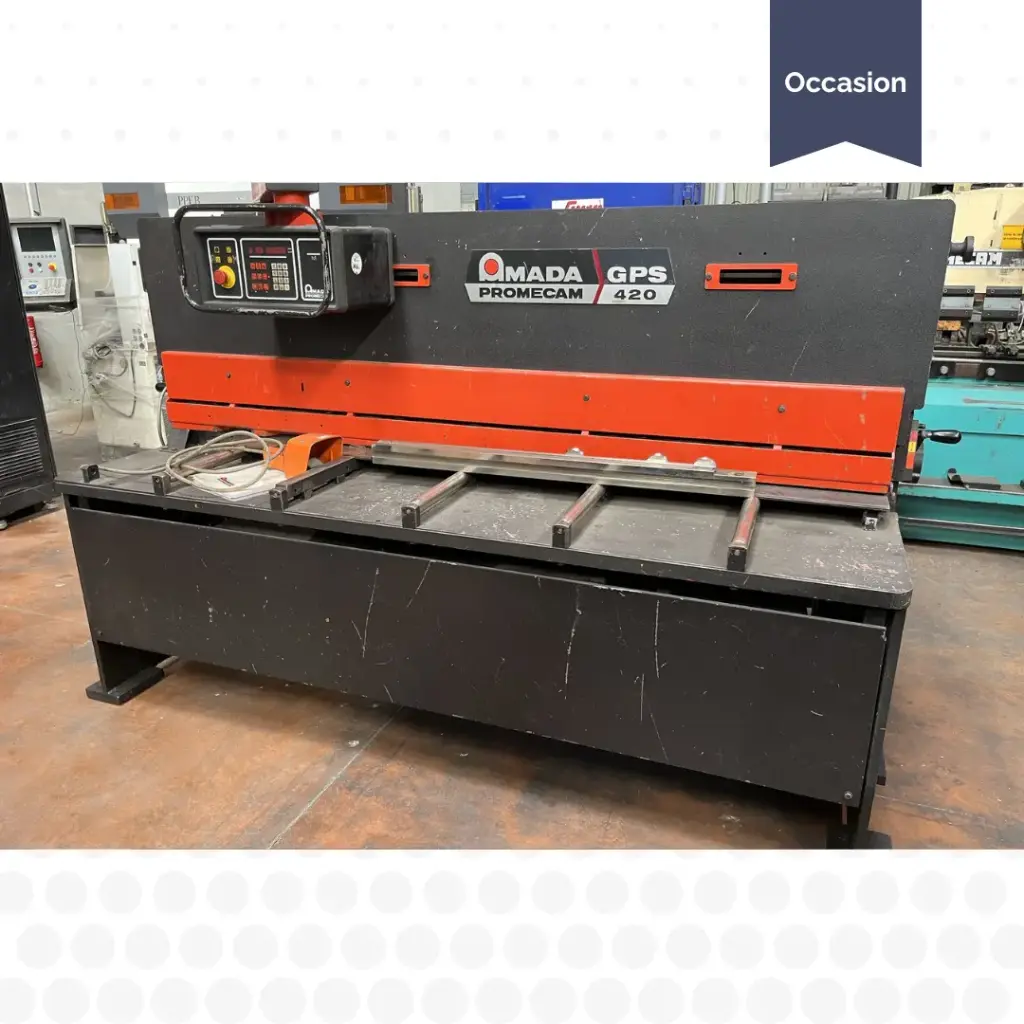

Amada GPS 420 Guillotine Shear
Brand: AMADA
Reference: T24074
Specifications:
| Machine dimensions (L x W x H): | 2600 x 2000 x 1700 mm |
| Total installed power:: | 5.5 kw |
| Machine weight (kg): | 3800 kg |
| Cutting length (mm): | 2050 mm |
| Rake angle adjustment: | Manual |
| Back gauge travel (mm): | 1000 mm |
| Cutting capacity, steel 45 kg/mm²: | 4 mm |
| Cutting capacity, stainless steel 60 kg/mm: | 2 mm |
| Front squaring arm: | 1200 mm |
Internal Reference:
T24074
